Decontamination Lock

Multiple Decontamination Method Chamber for Biomedical Research

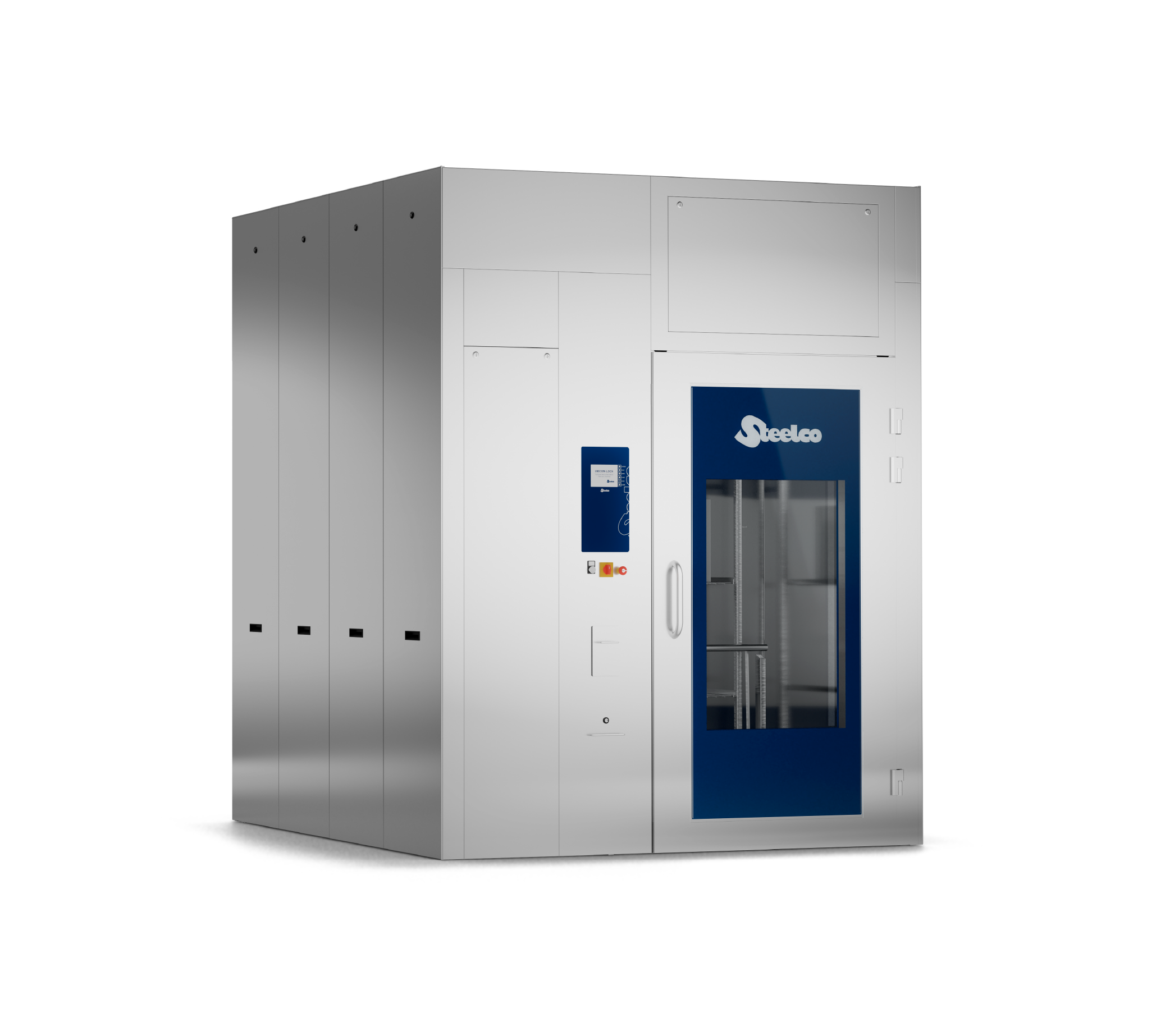

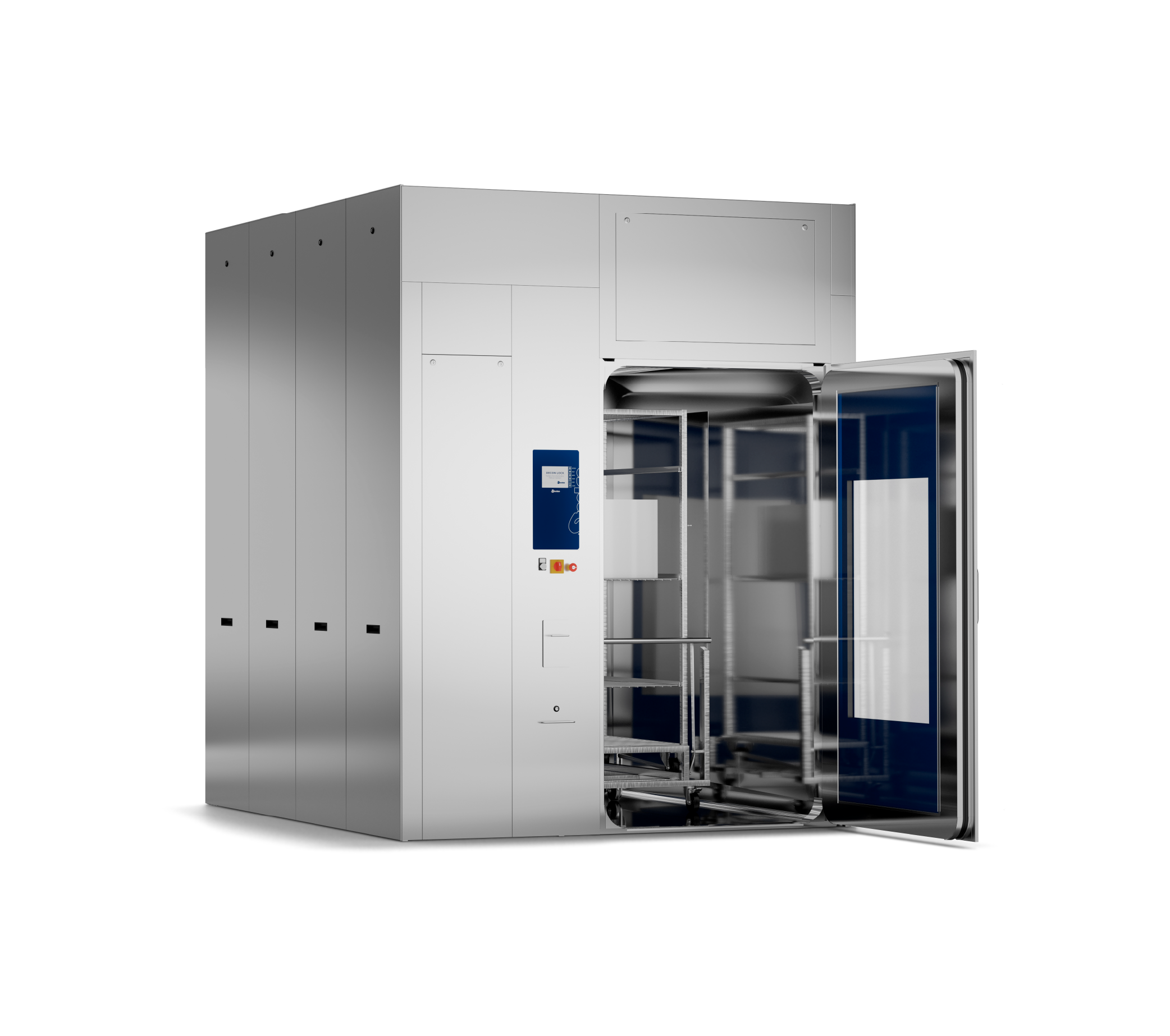

In partnership with Steelco, Sychem’s Decontamination Lock offers a comprehensive, validated solution for decontaminating heat-sensitive equipment, such as electronic devices entering a facility. Available in single- or double-door pass-through versions, with full glass or stainless steel doors with glass windows, the units feature inflatable gaskets to ensure chamber tightness in SPF barrier settings and during decontamination cycles.
The system supports onboard or external hydrogen peroxide (H₂O₂) vapour generators, compatible with various vendors to suit specific user needs. Alternatively, it can be connected to a chlorine dioxide generator.
H₂O₂ is distributed as vapour, ensuring homogeneous diffusion, even in hidden areas, via a dedicated ventilation system. This vaporisation/condensation approach maximises surface contact, providing efficient coverage and achieving a sterility assurance level (SAL) of 10⁶ at low temperatures.
A PLC digital controller with a user-friendly colour touchscreen HMI ensures full process control.

Door Dimensions (mm)

Chamber Depth (mm)

Door Options

CTA

Clients Below Have Tried, Tested And Use Steelco Equipment Within Their Current Processes:

Key Features

Customisation

Available both in full glass or stainless steel door version with glass window. Steelco is always available to provide chamber customisation to fit existing pit.
Hygienic Design

Chamber entirely made of mirrored finished stainless steel AISI 316L resistant to all the chemical solution used for the decontamination process for long-term reliability and cleanliness.
Versatility

Available with on board Hydrogen Peroxide generator or suitable for any type of existing external Generator available in the market.
Chamber Tightness

The access doors are equipped with integral inflatable gaskets in order to grant the tightness of the chamber in SPF barrier facilities as well as during the decontamination cycles.
Full Decontamination of Electronic Devices

Changing station or IVC air handling units can be power supply during the decontamination cycle thanks to the IP 67 socket installed in chamber, granting full decontamination even in the inner parts of the device.
User Friendly Control Panel

Industrial PLC with Touch Screen HMI and USB port. E-meter for utility consumptions, self-service, and tablet connectivity ready.

Discuss The Range

Certifications

EN 60204-1: 2006 + A1:2010
EN ISO 12100: 2010
2006/42/EC (Machinery Directive)
2014/35/EU (Low Voltage Directive)
2014/30/EU (EMC Directive)

Discuss The Range

Configurations

Door (mm)	Chamber Depth (mm)	Enquire
1170 x 2150	2300

More Information

D-PRO – On Board Hydrogen Peroxide Generator

Steelco D-PRO is a Hydrogen Peroxide dosing and vapour generator system manufactured to be fully integrated into the technical area of the main equipment sharing the same automation system (PLC and HMI). Through a thermal process the liquid hydrogen peroxide changes its status into gas and by micro condensation is mixed with filtered air and then introduced into the chamber. A precise load cell for H₂O₂ canister is provided in technical area or can be integrated in fascia panel with a dedicated drawer, easily accessible from the loading side.

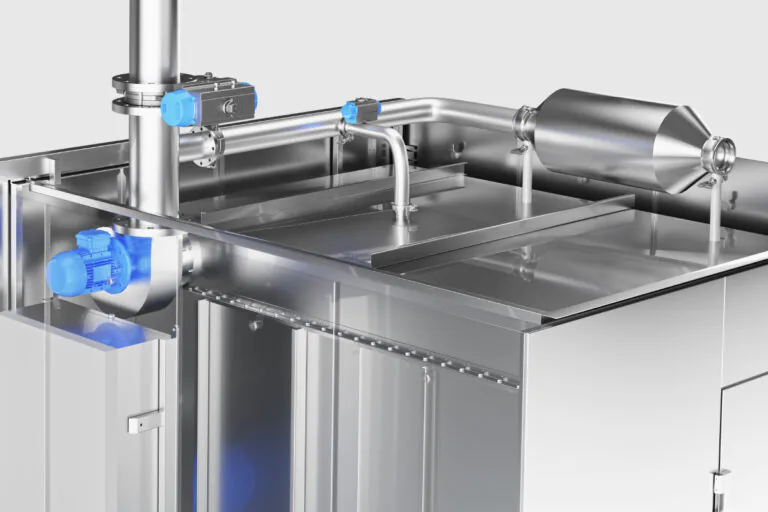

Fast and Safe Areation Phase

Once the biodecontamination process is complete, to reduce the concentration of H₂O₂ below the permitted set point, a fast aeration phase is performed by injection of fresh filterd air (HEPA filter with H14 ≥ 99.995% MPPS efficiency) into chamber, piping and onboard generator. Steelco has developed two different high-speed aeration systems:
Aeration using the centralised HVAC system, as standard
Aeration by an in-line catalyzer able to render the sterilant harmless, available as option.
In all cases, sterilant is removed from the chamber to a safe level of less than 1ppm before the door gaskets are released and the unloading door is allowed to open.
