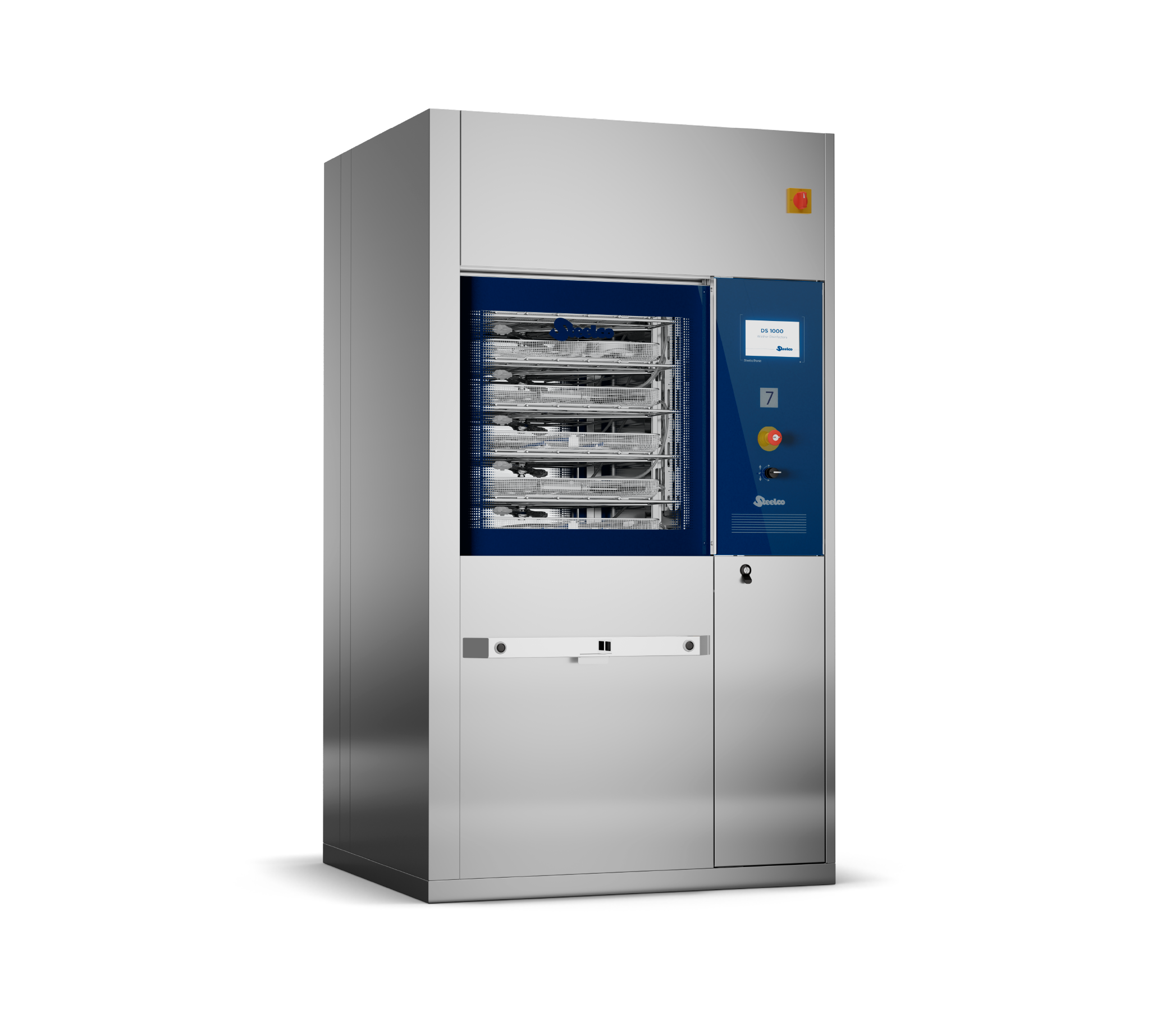

DS 1000 Series

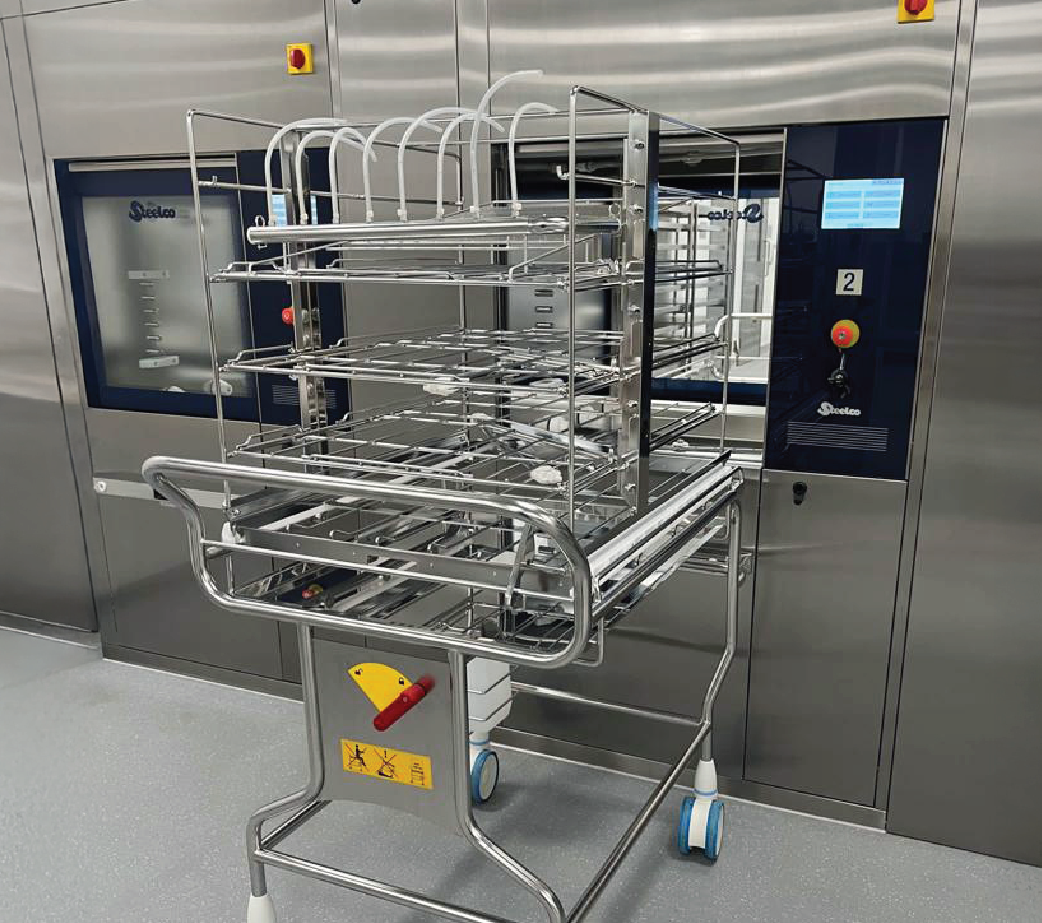

Available as a single door or double door for barrier application versions, the DS 1000 Series can also be ordered in a narrow frame configuration, reducing its width to just 900mm. Loading and unloading washing carts operations can be done at an ergonomic height using manual or automatic transfer conveyors. DS 1000 washer-disinfectors range can, in fact, be equipped with Steelco ATS (Automatic Transfer System) automation for washing loading racks.
Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:
Client 1
Key Features
-

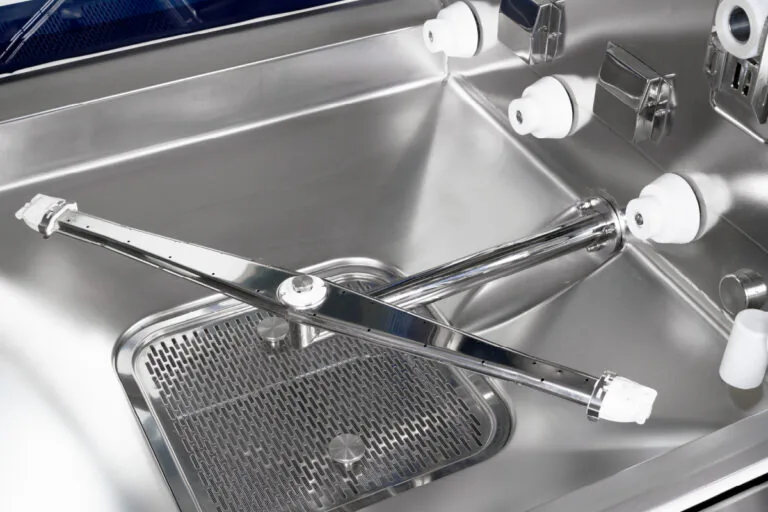

Advanced Washing Pumps
A vertically installed recirculation pump maintains a constant, high flow rate pressure to ensure excellent washing results.
-

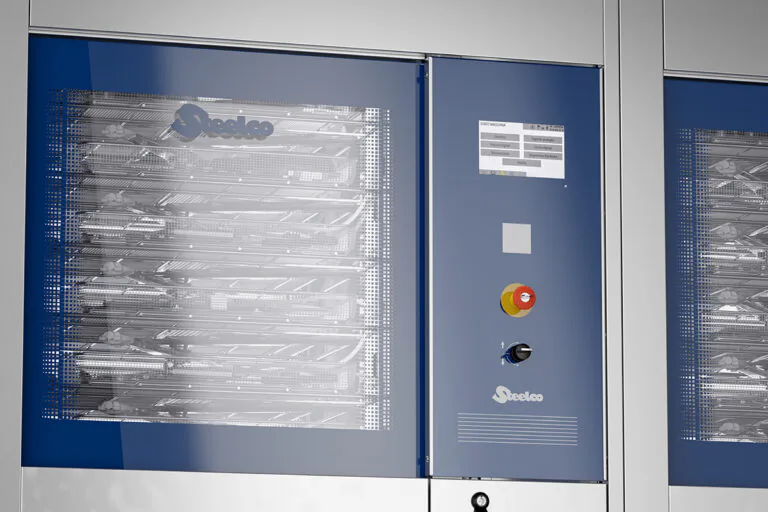

Space-Saving Sliding Down Door
Motorised sliding down double HST tempered glass door with safety device, granting total visual monitoring of the process.
-
Smart Filtering System
Triple water filtering system—easily accessible from the washing chamber—captures residue preventing re-circulation and extending the pump life.
-
Active Water Coupling System
The hydraulic circuit connection system between the washer and wash cart provides a watertight joint for more efficient cleaning and uniform disinfection temperature coverage.
-
Drying Efficacy
Built-In HEPA 14 filtered forced air drying system ensuring the complete internal and external drying of all the glassware. Adjustable time and temperature settings for the optimisation of cycle duration and energy consumption
-

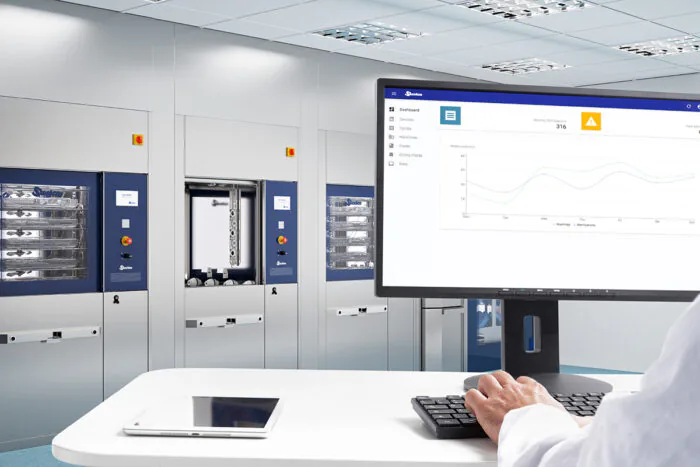

Full Traceability
Compatible with SteelcoData software suite. Printer connection and USB port for historical cycle data download and software upgrades.
Certifications
- Steelco Washer-Disinfectors are designed and constructed to comply with the latest European and UK guidelines on decontamination. EN ISO 15883-1/2, CEN ISO/TS 15883-5. Steelco Washer-Disinfectors are classified CE Medical Device (Community rule 93/42/CEE) code nr. 0051.
Configurations
Model | Description | Dimension WxDxH (mm) Standard & Fast Cycle | Dimension WxDxH (mm) Fast Cycle 2S & 3S | Chamber Volume (L) | Basket Volume (L) | Load Capacity | Enquire |
|---|---|---|---|---|---|---|---|
| DS 1000 | Standard Frame – 1100 mm Width HMI positioned on side of the chamber | 1100 x 960 x 1940 | N/A | ~500 | ~350 | Up to 18 DIN 1/1 trays | |
| DS 1000 N | Narrow Frame – 900 mm Width HMI positioned on top of the chamber | 900 x 960 x 1940 | 900 x 960 x 2620 | ~500 | ~350 | Up to 18 DIN 1/1 trays |
More Information
Downloads
Steelco Glassware Washers High Capacity
Download
