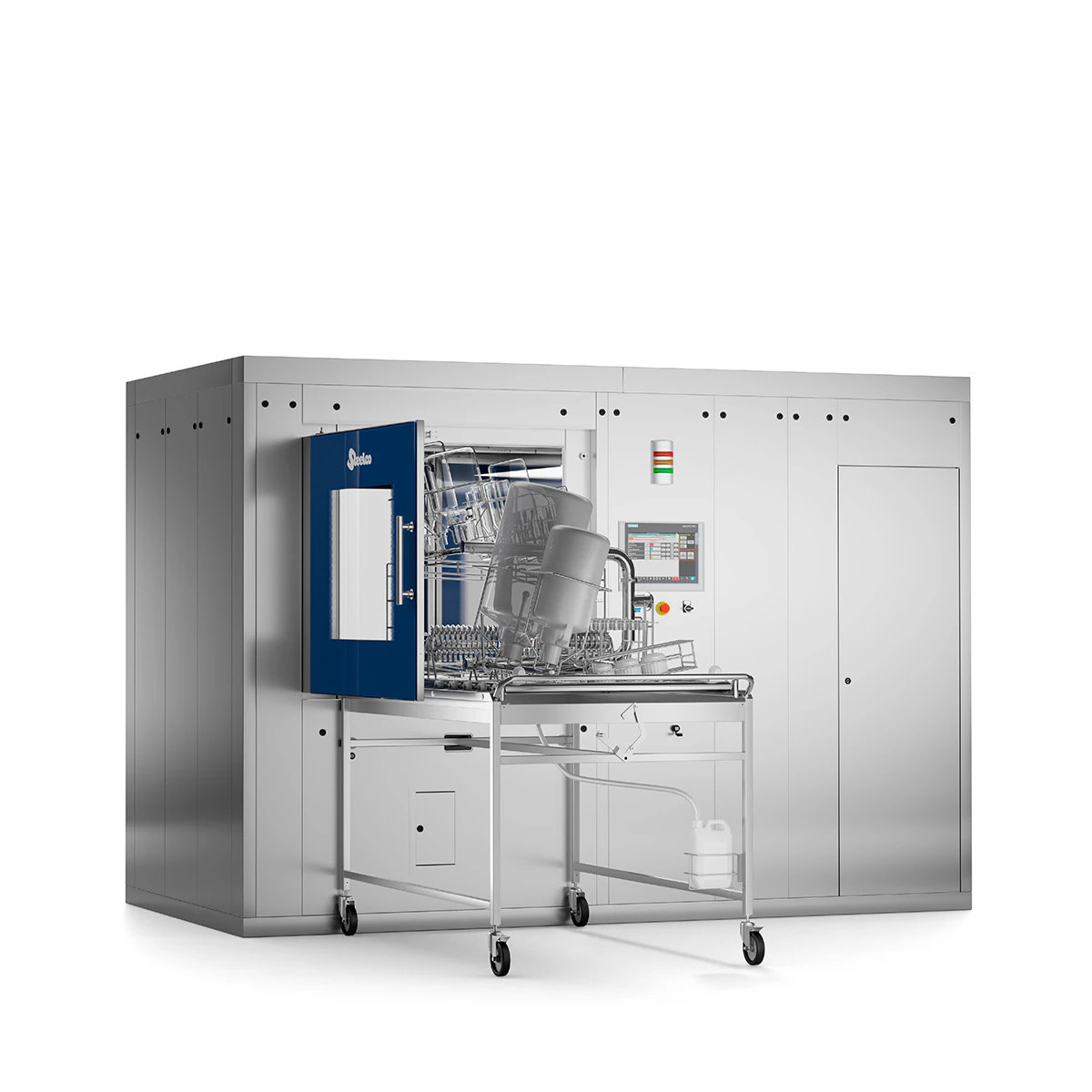

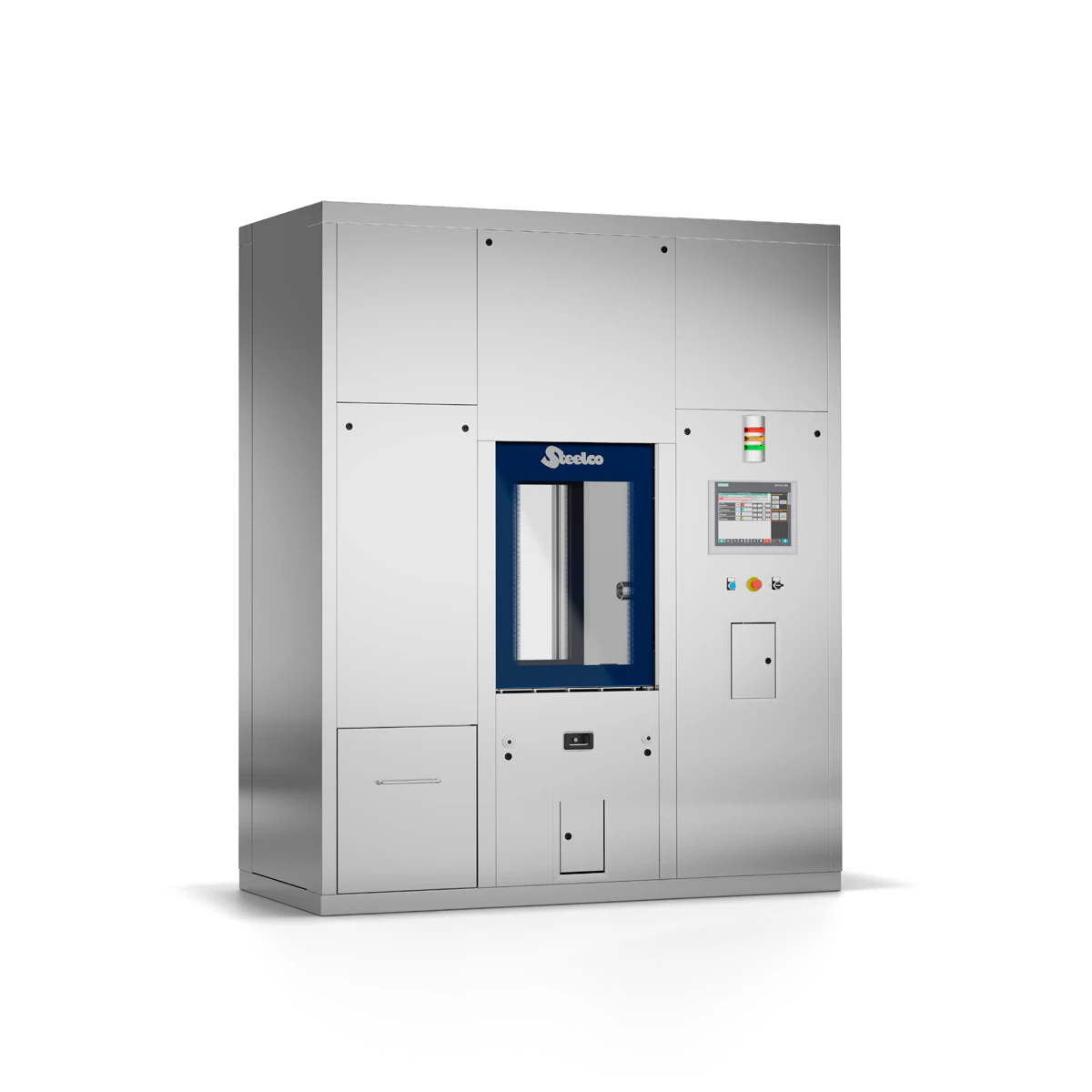

DS PH Series DS PH Series Pharma-Grade Part & Glassware Washers

Pharma-Grade Parts & Glassware Washers

The DS PH Series represents Steelco’s most versatile and high-capacity line of GMP-compliant parts and glassware washers, engineered to meet the rigorous demands of pharmaceutical and biotechnology industries. Designed for exceptional throughput, efficiency, and cleaning validation, these washers offer flexible configurations, a broad range of chamber sizes, and unmatched process reliability. Whether cleaning small lab glassware or large-scale production equipment, the DS PH Series combines hygienic design, intelligent automation, and sustainable operation in one robust platform.

High-Throughput, Validatable Cleaning Systems for Pharmaceutical and Biotech Environments

Chamber Volume (L)

Doors

Heating Options

Download Brochure

Click to see full view

Click to see full view

Click to see full view

Click to see full view

Click to see full view

Click to see full view

Hover to zoom

DS PH Series Pharma-Grade Part & Glassware Washers

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Key Features

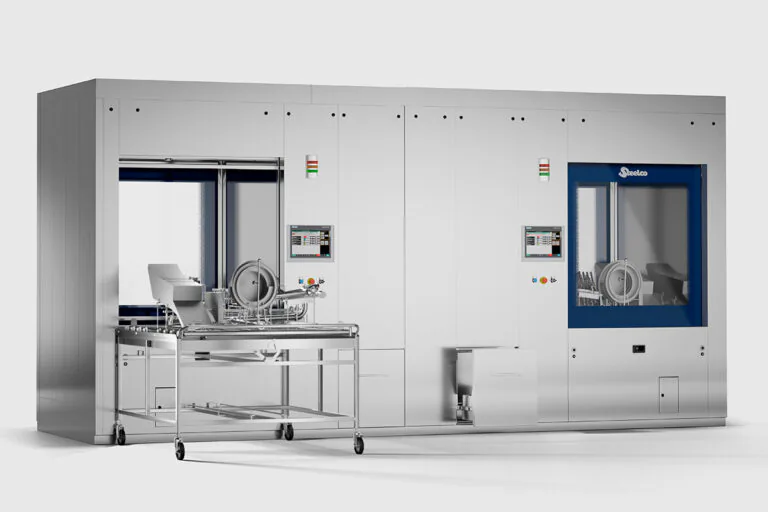

Extensive Configuration Flexibility

Wide range of chamber sizes (230 to 2,400 litres) with over 400 configurable options to suit any production environment.

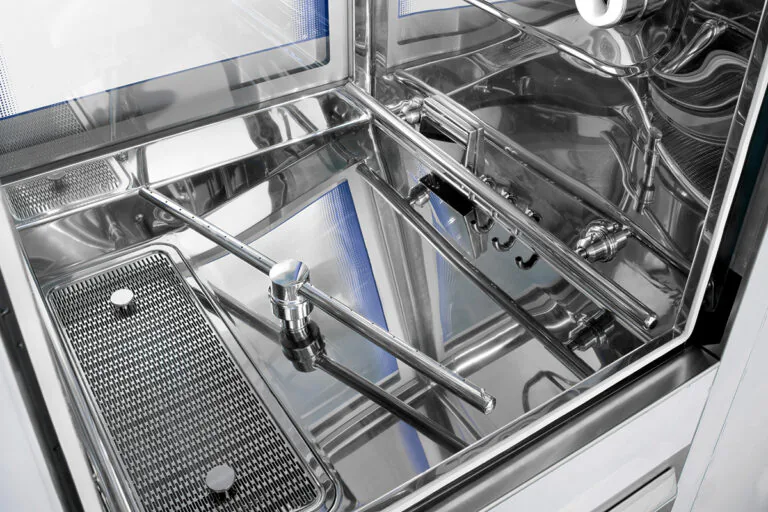

Fully GMP-Compliant Design

Chamber and piping self-clean during every cycle stage to eliminate cross-contamination risk.
Modular Installation

Technical area and cabinet placement options (left/right/remotely) allow flexible plant integration, even for inline machine setups.
User-Friendly Automation

Advanced 15″ HMI with Siemens or Allen-Bradley PLC, built to ISPE GAMP© and compliant with FDA 21 CFR Part 11 and EU Annex 11.
Remote Support Ready

Onboard VPN router enables secure remote diagnostics and assistance to reduce downtime and support costs.

Discuss The Range

Certifications

cGMP-compliant | FDA 21 CFR Part 11 | EU Annex 11 | ISPE GAMP© V Guidelines | Material compliance to 21 CFR Part 177 (FDA-approved gaskets and seals)

Discuss The Range

Configurations

Chamber Volume (L)	Custom Sizes	Door Options	Heating Options	Surface Finish	Wetted Materials	Drying System	Enquire
230 – 2400L	Available on request	Single or double door; vertical/horizontal sliding or hinged	Steam or Electrical heat exchanger	Ra<0.51 µm standard (Ra < 0.38 µm upon request)	AISI 316L stainless steel with FDA-approved gaskets	HEPA filtered; variable temperature; integrated or remote

More Information

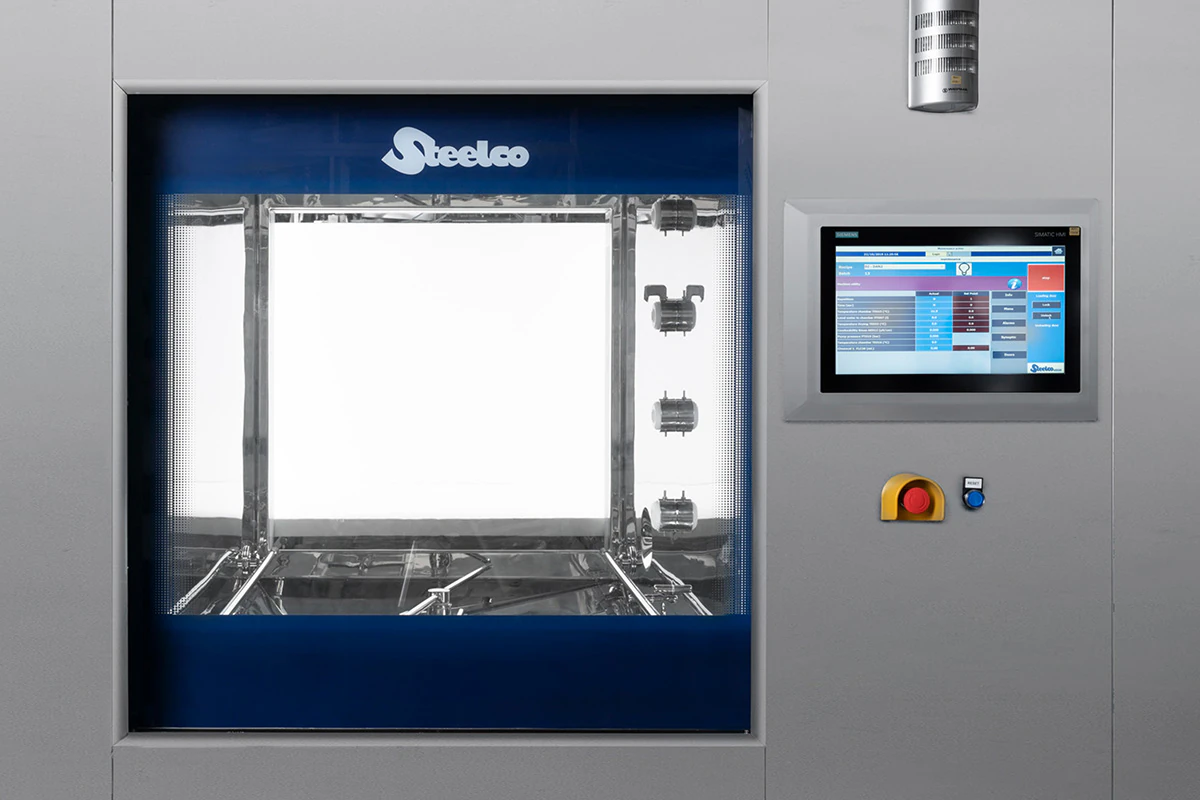

Automation & Integration

Our integrated control systems offer four tiers of connectivity:

1. Standalone local control
2. SCADA integration on customer IT infrastructure
3. On-premise or remote data hosting
4. Full remote VPN support for commissioning, troubleshooting, and maintenance

All systems maintain a consistent user interface across Steelco GMP platforms (washers, autoclaves, etc.), enabling easy training and seamless operation.

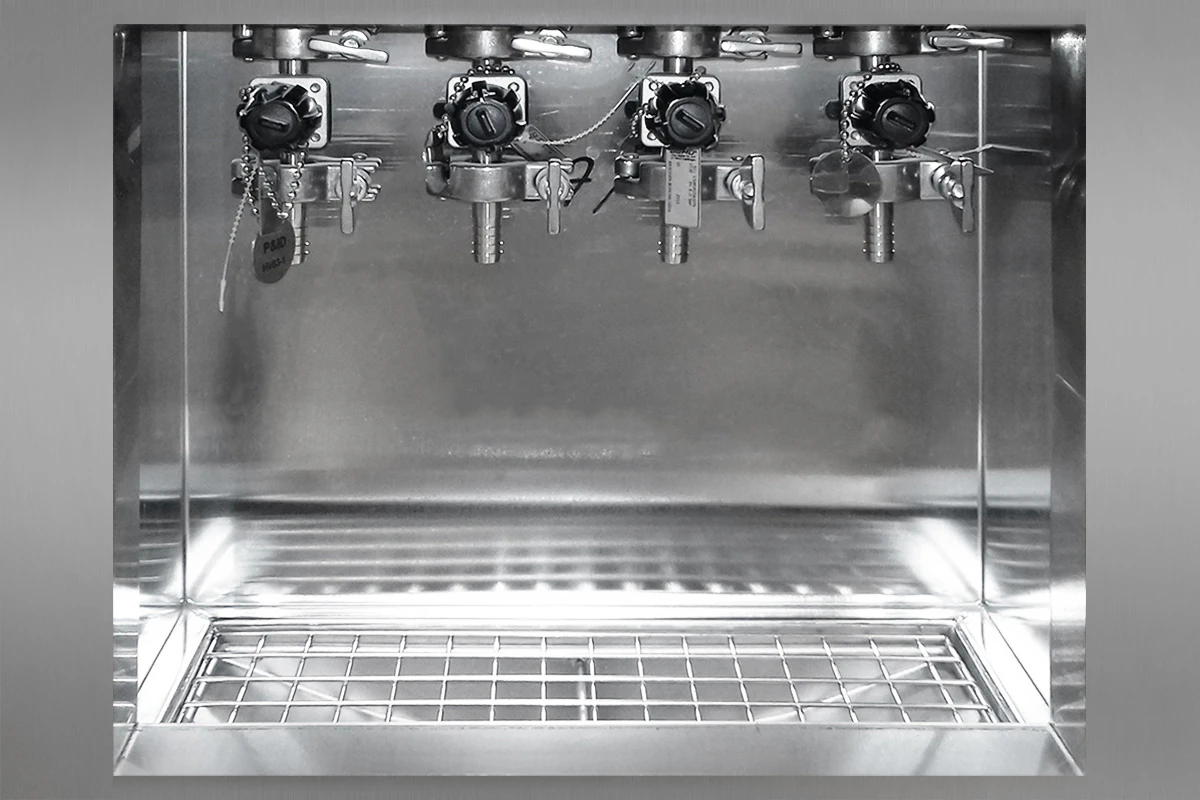

Sampling & Validation Readiness

To support QA and validation, DS PH units can include:

1. Water sampling from sump, final rinse, or point-of-use
2. Clean steam and PCA (Process Compressed Air) sampling
3. Manual or automatic valves with T/C ports
4. Sample ports integrated in service areas or fascia panel alcoves.

Qualification Services

We offer complete lifecycle services, including:
1. Technical consulting and engineering
2. Factory and site acceptance testing
3. Qualification documentation (DQ, IQ, OQ, PQ)

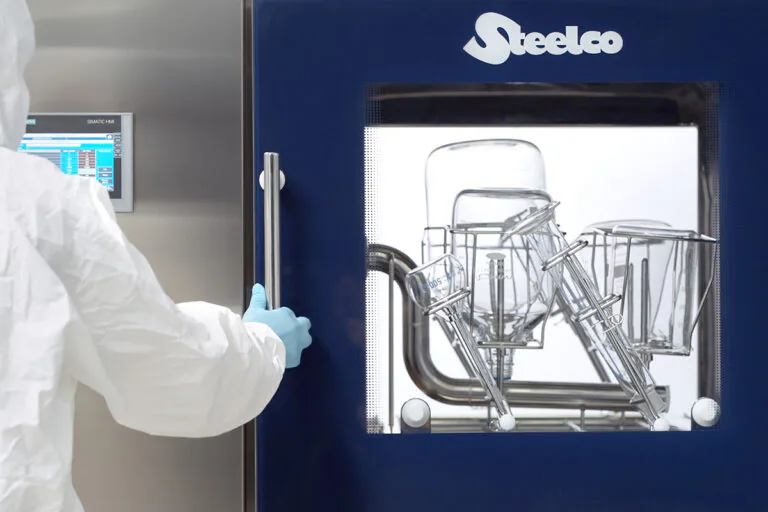

4. On-site process and cycle development support.

Rack & Trolley Engineering

In-house rack and trolley systems ensure:
1. Optimal cleaning and drying of complex geometries
2. Compatibility with all cycle parameters
3. Reproducible, validated cleaning outcomes
4. Single-source design responsibility for rack and machine integration.

Delivery & Customisation

With more than 400 modular options available, Steelco ensures each DS PH system is built to meet your exact operational, spatial, and regulatory needs. Custom configurations and dimensions are available upon request.
