LAB 500 Series

Compact Underbench Glassware Washers
In partnership with Steelco, Sychem’sLAB 500 Series of compact under-bench glassware washers offers optimal cleaning performance for small and medium-sized laboratories where space is at a premium. LAB 500 next-generation laboratory washers share the washing technology of higher-throughput devices, providing unmatched flexibility, excellent cleaning, and drying efficacy. The models of the series are capable of injection washing and drying on up to two independent levels.

An electronic temperature control system with two independent probes guarantees permanence at 93°C/199F ensuring cycle efficiency in terms of performance and duration. The HEPA 14 filtered forced air drying system (available on some models) helps achieve complete drying of your glassware’s exterior and interior. Ergonomics telescopic bearing rails enable easy and safe loading and unloading of glassware.


Download Brochure

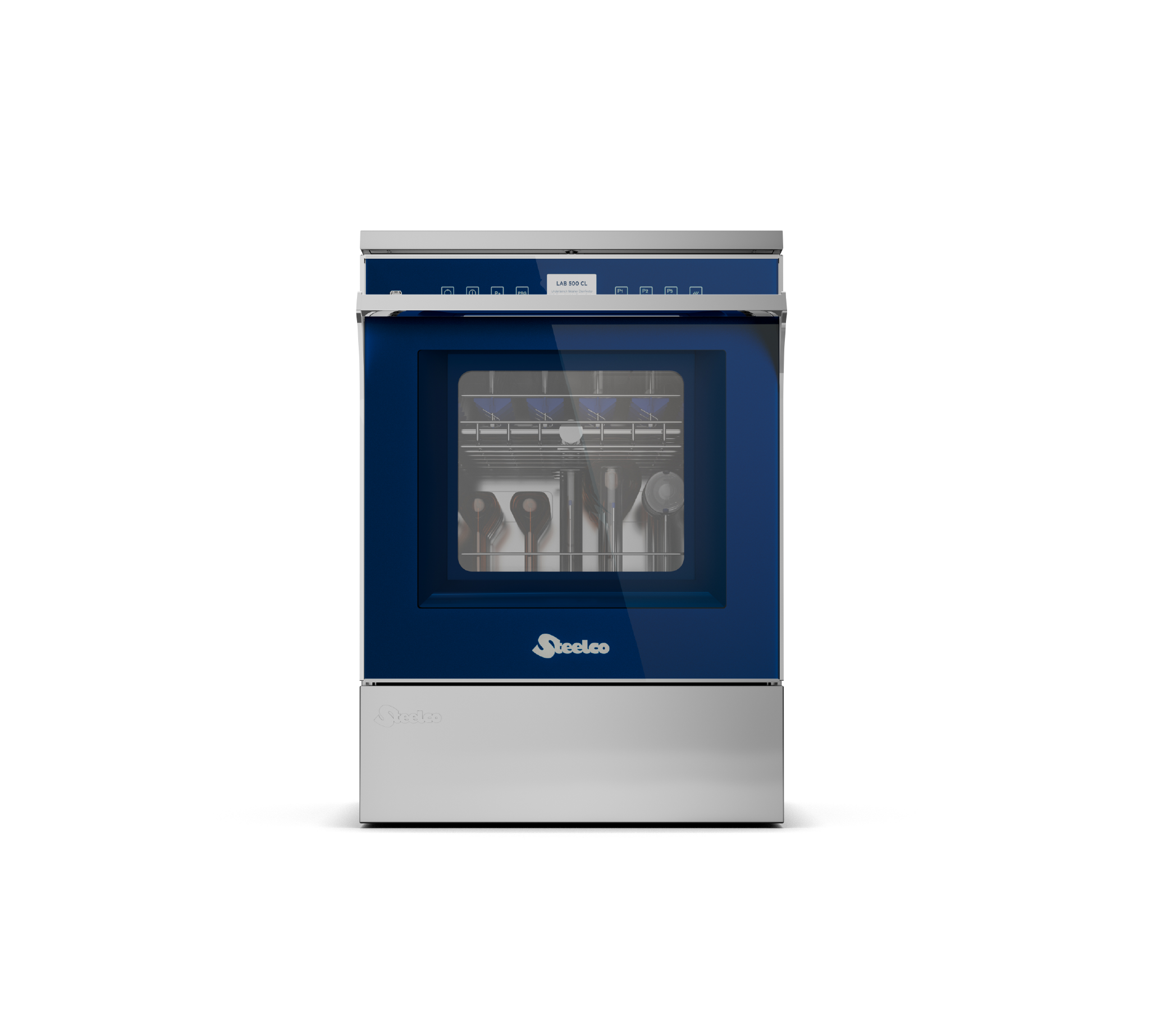

steelco-lab-500-side

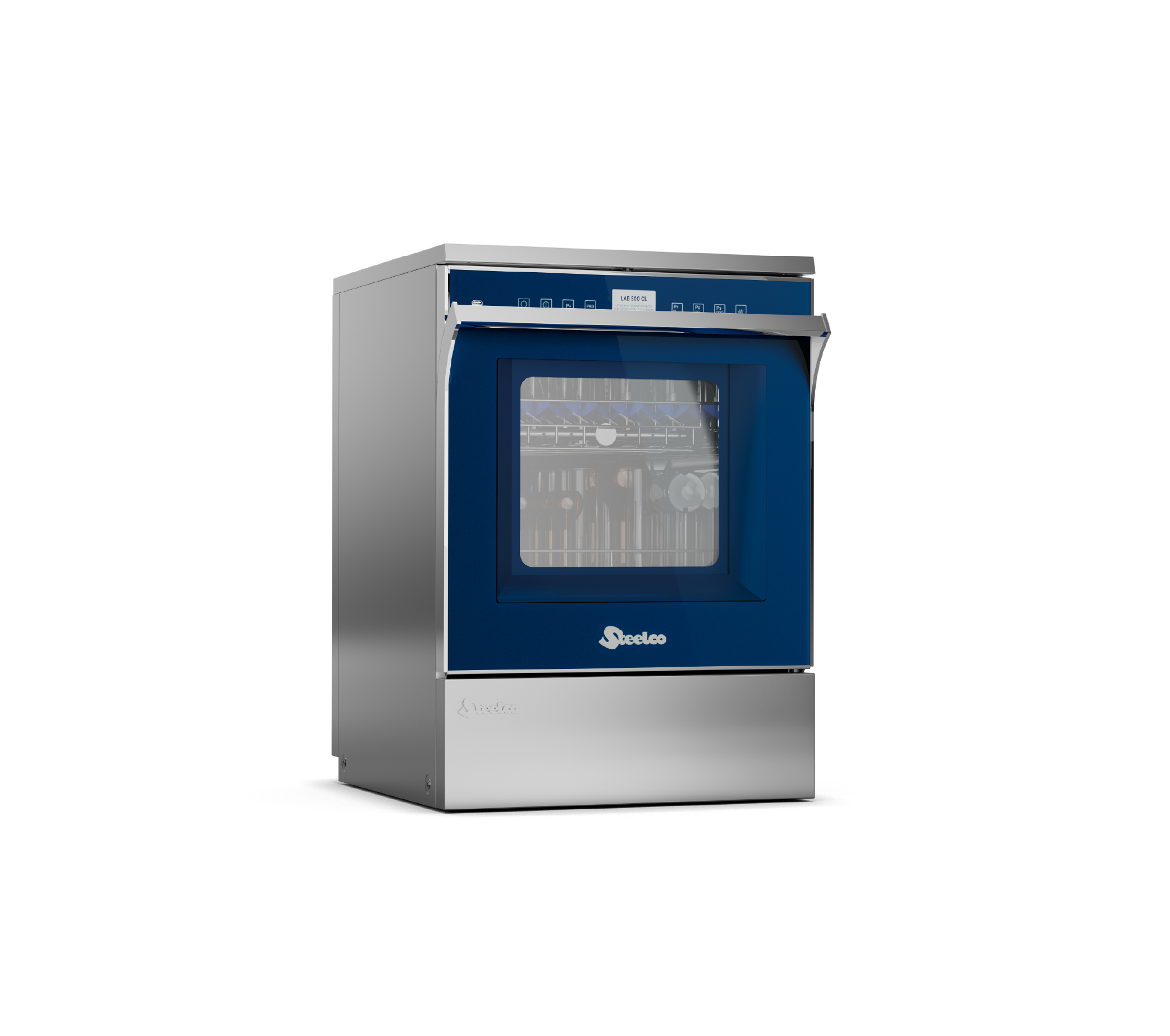

steelco-lab-500-front

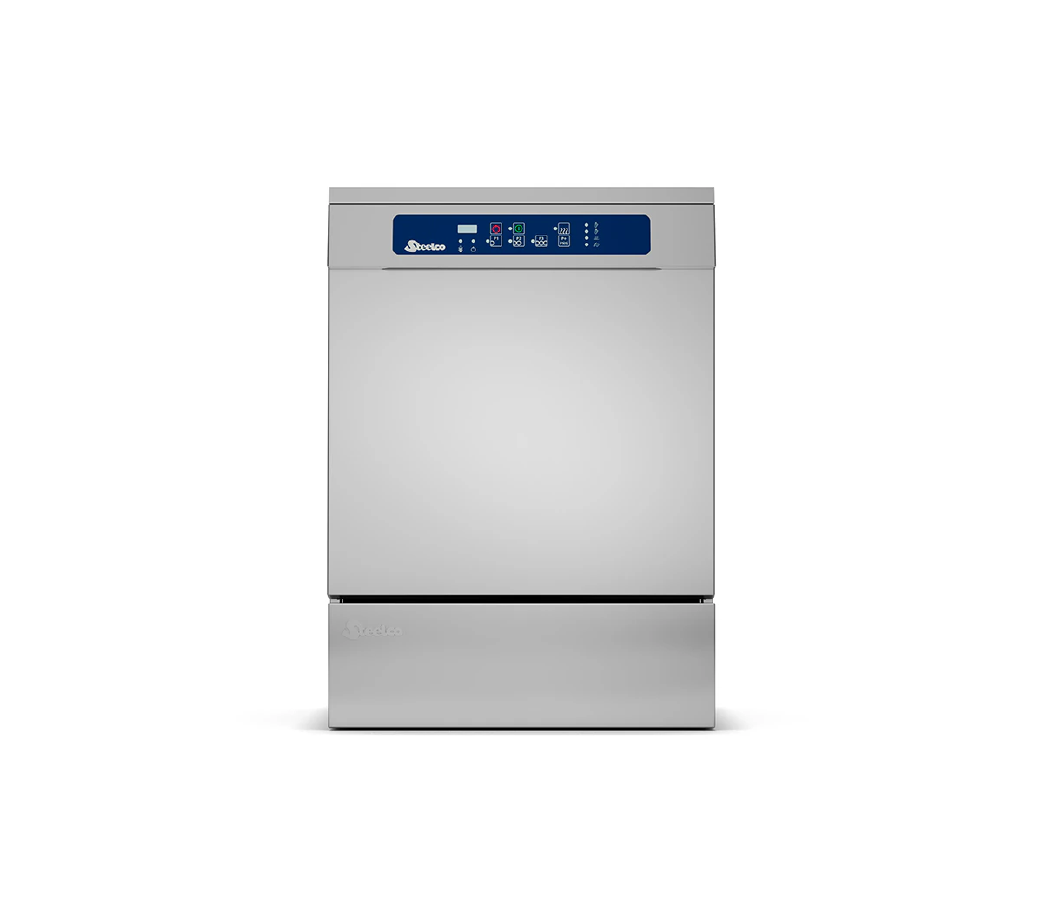

steelco-lab-500-sc

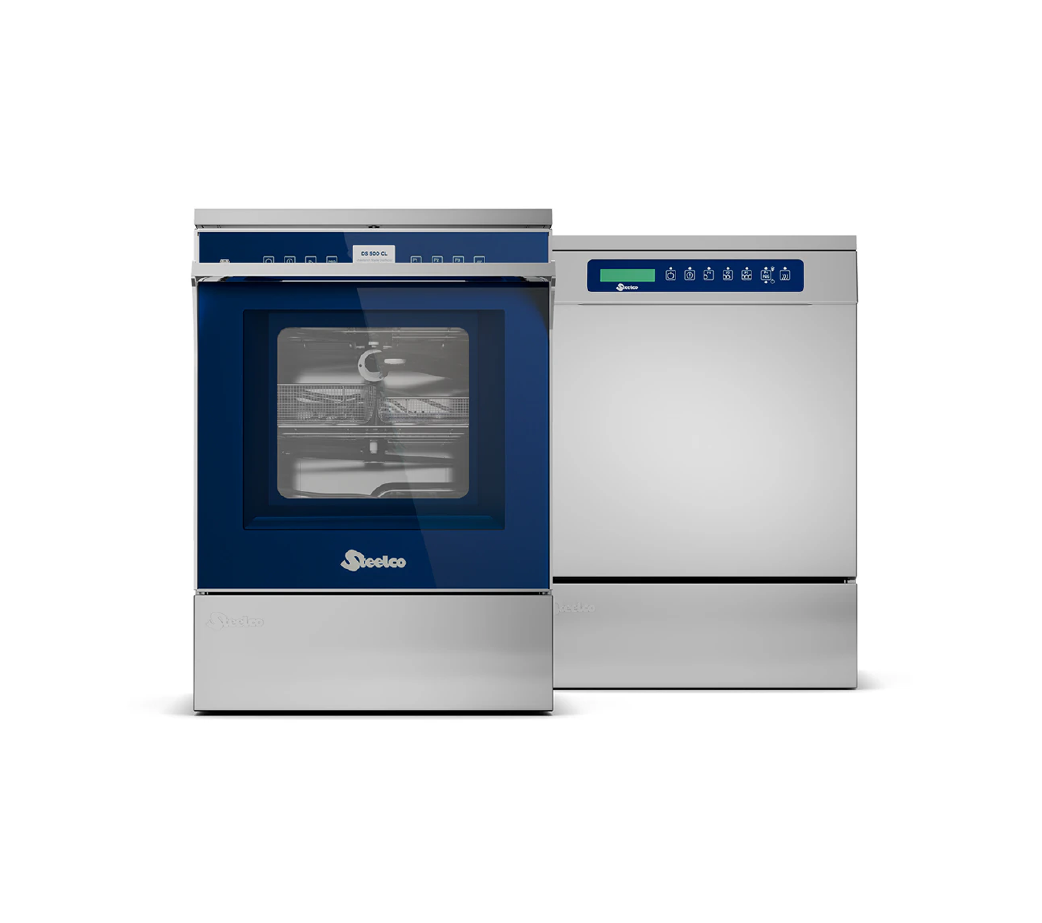

steelco-lab-500-cl
steelco-lab-500-drs

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Client 1

Key Features

  • Optimal Cleaning

    Powerful washing pump with high flow rate combined with effective spray pressure, optimizing water flow and pressure

  • Chemical Dosing

    Two standard peristaltic pumps provide precise addition of liquid chemical agents. An additional dosing pump to meet specific wash requirements is available up on request

  • Steam Condenser

    As standard, the LAB 500 series is equipped with an integrated steam condenser to prevent vapors from entering into the washing area at a set temperature – programmable from 0°C to 93°C (32°F – 200°F)

  • Traceability

    RS 232 Port for printer connection to monitor and validate washing cycle. A USB port for historical cycle data and machine parameters is available on LAB 500 SCL / CL / DRS models
Discuss The Range

Certifications

  • Steelco Laboratory glassware washers comply with the current European directives and standards as follow: 2006/42/EC, 2014/35/EU, 2014/30/EU and 2011/65/EU Directives, EN 61010-1, EN 61010-2-040, EN 61326-1, EN ISO 15883-1 current standards.
Discuss The Range

Configurations

Model

Overall Dimensions WxDxH (mm)

Stainless Steel Door

Full Glass Door

Enquire
LAB 500 SC – The LAB 500 SC is available in stainless steel door version only | LED display 600 x 630 x 85010 programs | RS 232 port dedicated for printer or PC connection N/A
LAB 500 SCL – This configuration is available in two models600 x 630 x 850LCD display | 40 programs | RS 232 port for printer or PC connection | USB port for cycle data storage and program updating.Full glass soft touch panel 40 programs | RS 232 port for printer or PC connection | USB port for cycle data storage and program updating
LAB 500 CL – With forced hot air dying system on two independent levels – available in two models600 x 630 x 850 LCD display- 40 programs | RS 232 port for printer or PC connection | USB port for cycle data storage and program updating Full glass soft touch panel 40 programs | RS 232 port for printer or PC connection | USB port for cycle data storage and program updating
LAB 500 DRS – With forced hot air dying system on two independent levels and a 300 mm width lateral cabinet door for chemical storage – direct access to drying filtering system and direct access to chemical dosing system 900 x 630 x 850Available in two models | LCD display 40 program RS 232 port for printer or PC connection | USB port for cycle data storage and program updatingFull glass soft touch panel | 40 programs | RS 232 port for printer or PC connection | USB port for cycle data storage and program updating

More Information

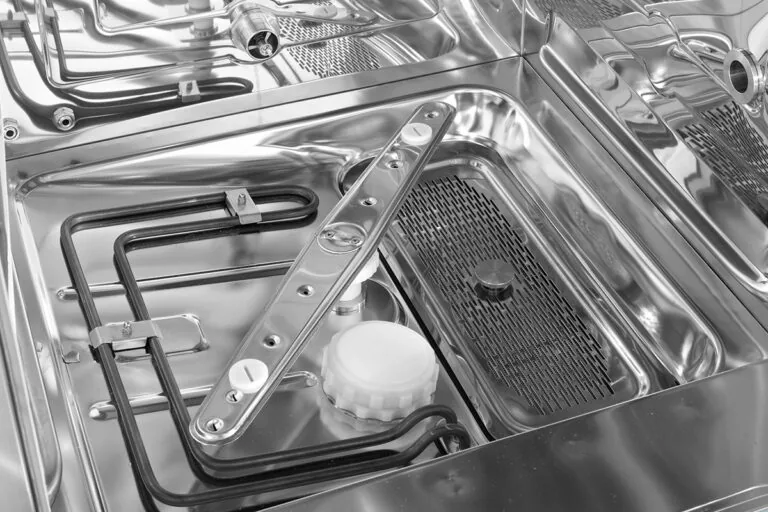

Hygienic Design

The washing chamber and spray arms, as well as tank filters, are made of high quality AISI 316 L stainless steel (DIN 1.4404). The washing chamber has rounded edges in order to avoid any dirt traps, minimizing the risk of microbial growth. The external cabinet is made of AISI 304 stainless steel (DIN 1.4301). Water filtering system on three levels captures residue preventing re-circulation and extending the pump life.

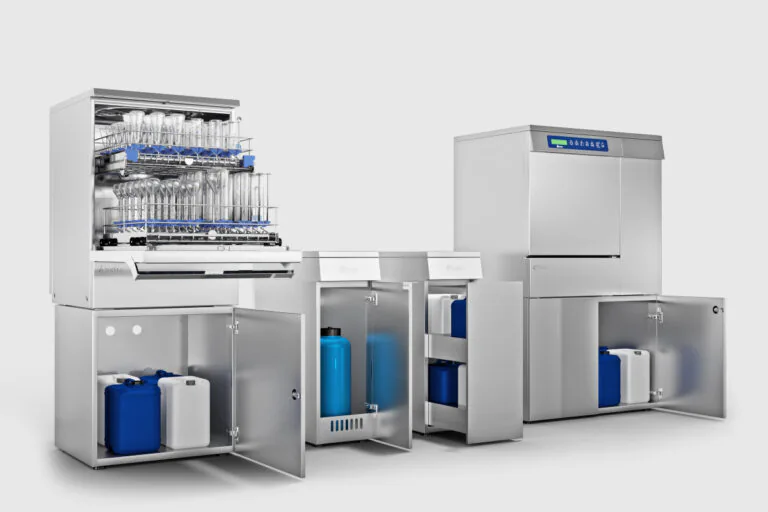

Stands and Side Cabinets

Different models of 300mm wide side cabinets allow holding:

– Boiler for DI water preheating (cabinet and washer-disinfector are manufactured as a single 900 mm wide unit).

– Purification system for DI water supply.

– Up to four 5-liters / 1.32 Gal US chemical containers.

Stands improve ergonomics when the machine is not installed under the counter. The 600mm/23.62” height stands are equipped with doors for easy storage access to chemicals and accessories. The stand is recommended when the machine is equipped with the option of boiler to preheat DI water and the needed booster pump.

Excellent Drying Results

Our series of glassware washers and dryers feature a built-in HEPA 14 filtered forced air drying system ensuring the complete internal and external drying of all the glassware. It allows for adjustable time and temperature settings, optimising cycle duration and energy consumption.

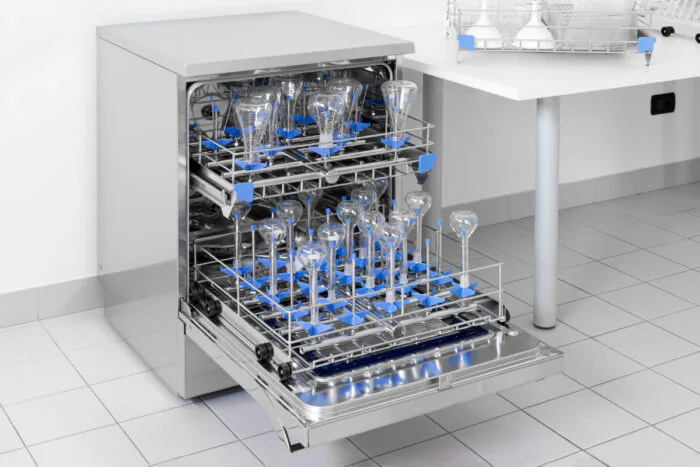

Easy loading/unloading

The door acts as a loading platform for lower and dual injection wash carts. At the same time, the upper level has fully extendable telescopic bearing rails allowing an easy and safe loading/unloading of the glassware. As standard, the unit is equipped with two rotary spray arms, one on the bottom and one on the top of the chamber. Upper-level racks are also available with a rotating washing arm for washing general-purpose items.

Downloads

Steelco Glassware Washers Small & Medium

Steelco Glassware Washers Small & Medium

Download
