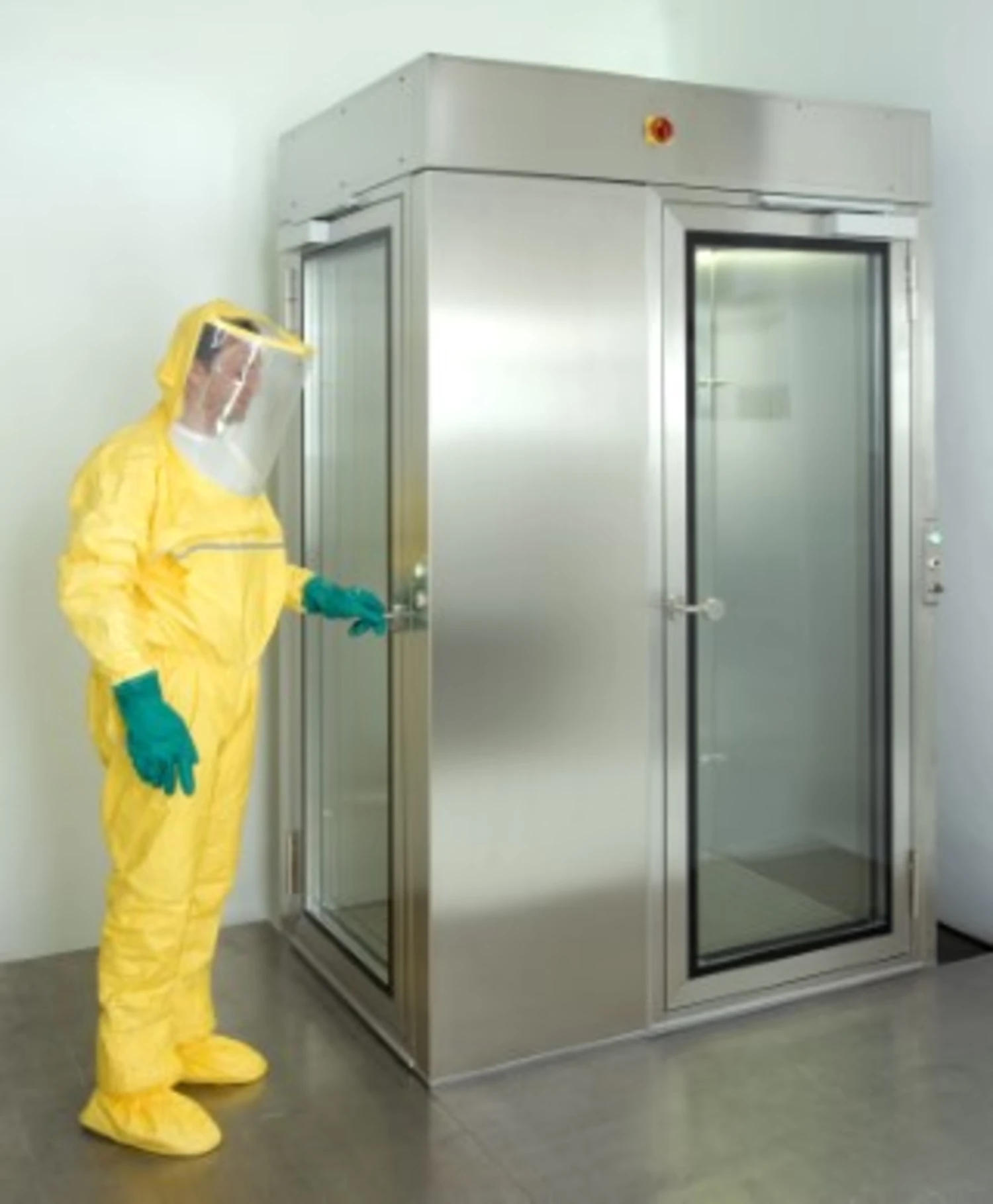

Personnel Wet Shower
In proud partnership with Ortner
Designed for high-risk environments such as Pharmaceutical, Chemical, Laboratory, and BSL Zone D applications, our Personnel Wet Shower ensures optimal decontamination, safeguarding personnel and preventing contamination transfer from restricted areas. This GMP-compliant Wet Shower is designed for the controlled removal of hazardous substances from personnel. By integrating automated and validatable cleaning processes, this Wet Shower provides an efficient, cost-effective, and easy-to-maintain decontamination system. A fluorescence test ensures the highest cleaning quality, offering unmatched personnel safety.
Ultimate Protection Against Contamination Carryover
Click to see full view
Hover to zoom
Wet Shower
Key Features & Benefits
Configurations
Technical Specifications | Value |
|---|---|
| Housing & Chamber Material | Brushed Stainless Steel EN-ISO 1.4301 |
| Electrical Connection | 230 VCA / 16A / 50 Hz |
| Power Consumption | Approx. 0.7KW |

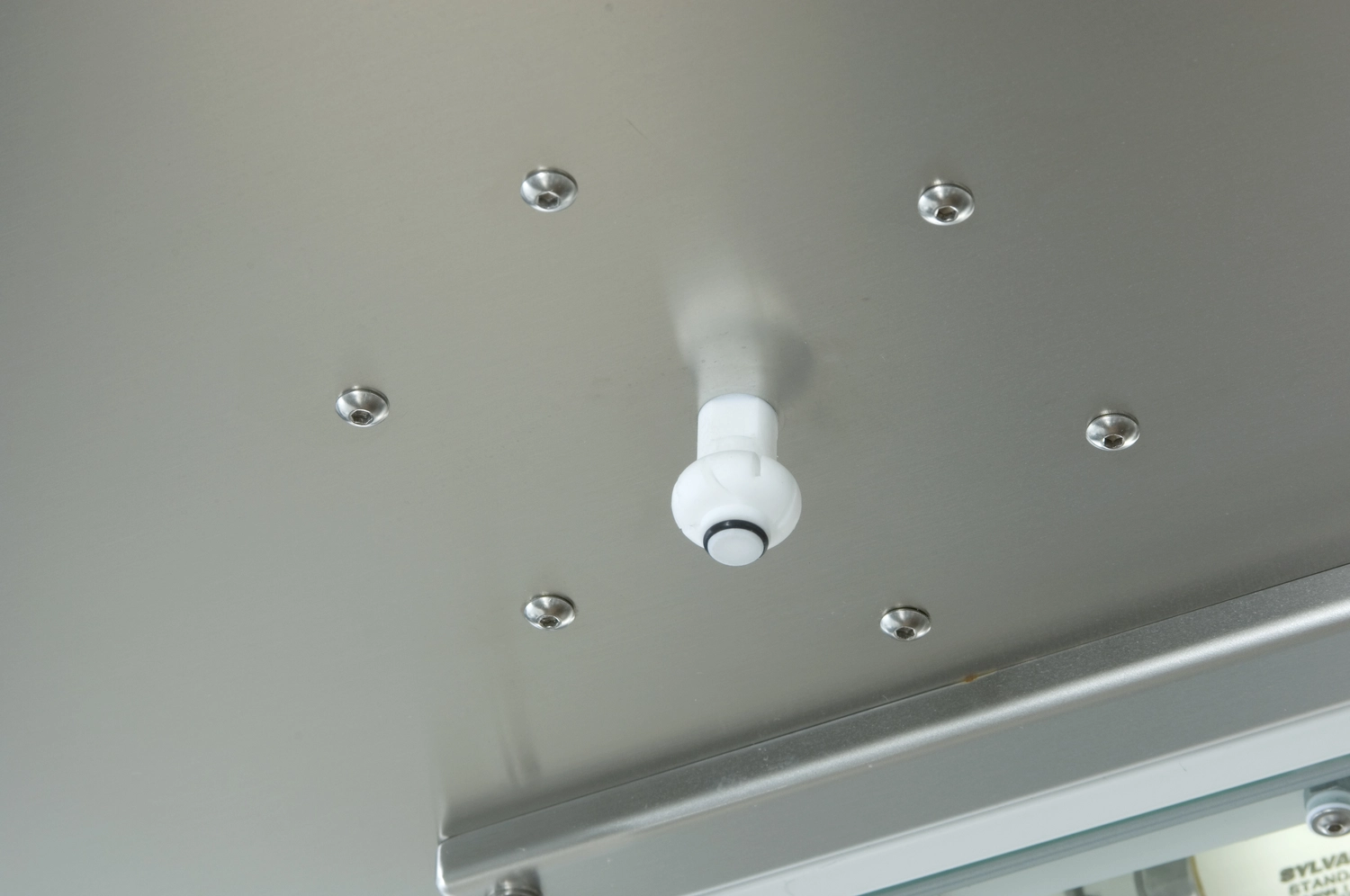

| Nozzles | 4 fogging nozzles & 1 chamber cleaning nozzle (with optional bag-out port) |
| Control System | Siemens SPS 1200 |

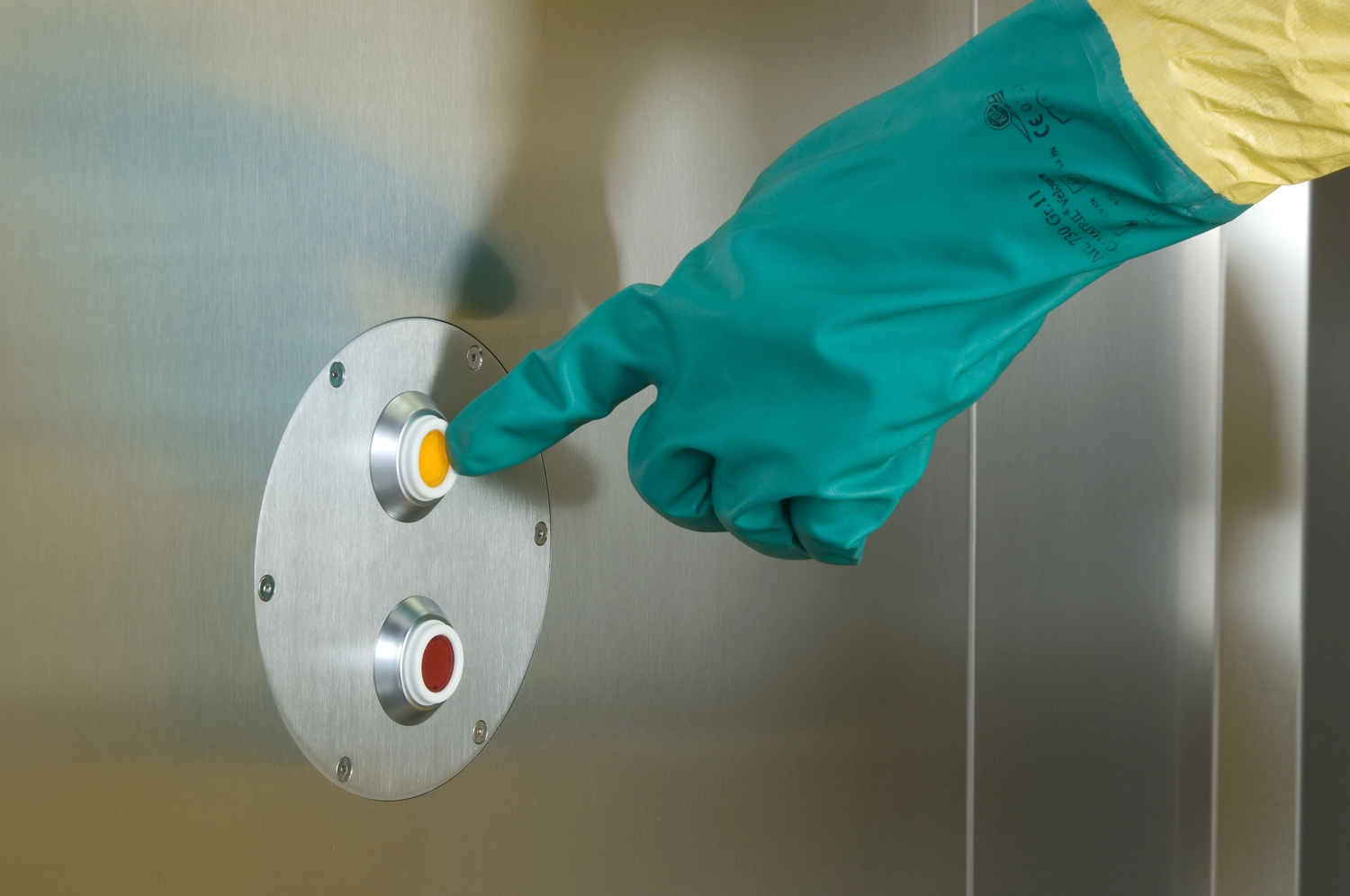

| User Interface | Illuminated push buttons (red/green/yellow) |
| Door Sealsm | Lip seals for enhanced containment |
| Water Monitoring | Flow switch for real-time monitoring |
| Protection Class | IP65 for reliable operation in demanding environments |
| Pneumatic Connections | 3/4″ 6 bar oil and water free |
| Door Interlock System | E-door opener with signal contact |
| Air Consumption | Door nozzles: 1380 l/min | Fog nozzles: 2 l/min | Chamber cleaning: 18 l/min | Max. compressed air consumption: 1380 l/min |
| Available Customisations | Additional door cleaning nozzles (2 per door) | Bag-out port for safe disposal | Special 3-door design (available upon request) | Compressed air monitoring | Breathing air interface for enhanced safety | Integrated filter system | Foot sole cleaning functionality | Upper door closer for secure sealing |
| Model Dimensions (mm) | Inner Chamber (WxHxD): 1160 x 2100 x 1160 | Overall Dimensions (WxHxD): 1300 x 2700 x 1300 |
