VS LD Compact Vertical Steam Steriliser
The VS LD is a Compact Vertical Loading Steriliser
In partnership with Steelco, Sychem’s VS LD Series of vertical loading autoclaves answers the specific sterilisation needs of a modern laboratory. Free-standing and compact, the devices efficiently uses space to minimise operating cost while maximizing cleaning performance. With proven and reliable sterilizing technology, the machines guarantee safe, efficient, and reliable high-performance, with an unrivaled capacity/footprint ratio.
High-quality design – both hinged door and sterilisation chamber in AISI 316L stainless steel – ensures both durability and ease of cleaning. Featuring 121°C / 249.8 F and 134°C / 273.2 F cycles as well as service programs. A water ring vacuum pump, for efficient pre-vacuum air removal and post vacuum, and chamber jacket heating, to cut down cycle time and enhance the drying phase of solid loads, are available upon request.
High-quality design – both hinged door and sterilisation chamber in AISI 316L stainless steel – ensures both durability and ease of cleaning. Featuring 121°C / 249.8 F and 134°C / 273.2 F cycles as well as service programs. A water ring vacuum pump, for efficient pre-vacuum air removal and post vacuum, and chamber jacket heating, to cut down cycle time and enhance the drying phase of solid loads, are available upon request.
Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:
Key Features
-
Small Footprint
Unrivaled capacity/footprint ratio for maximum productivity even when space is at a premium
-
Cycle Development
Various equipment and cycle options to meet the needs of a wide range of applications
-
Independent Pressure Probe
A pressure reference transducer allows the recording of the pressure during all cycle
-
7″ User Friendly HMI
PLC digital microprocessor with intuitive 7” color touch screen HMI, for 20 programming options
Certifications
- STEELCO steam sterilisers VS L series meet the applicable requirements of the following standards: 2006/42/CE (Machinery Directive), 2014/30/EU (EMC Directive), 2014/68/UE (PED)
Configurations
Model | Chamber Volume(L) | Chamber Dimensions (mm) | Overall Dimensions (mm) | Enquire |
|---|---|---|---|---|

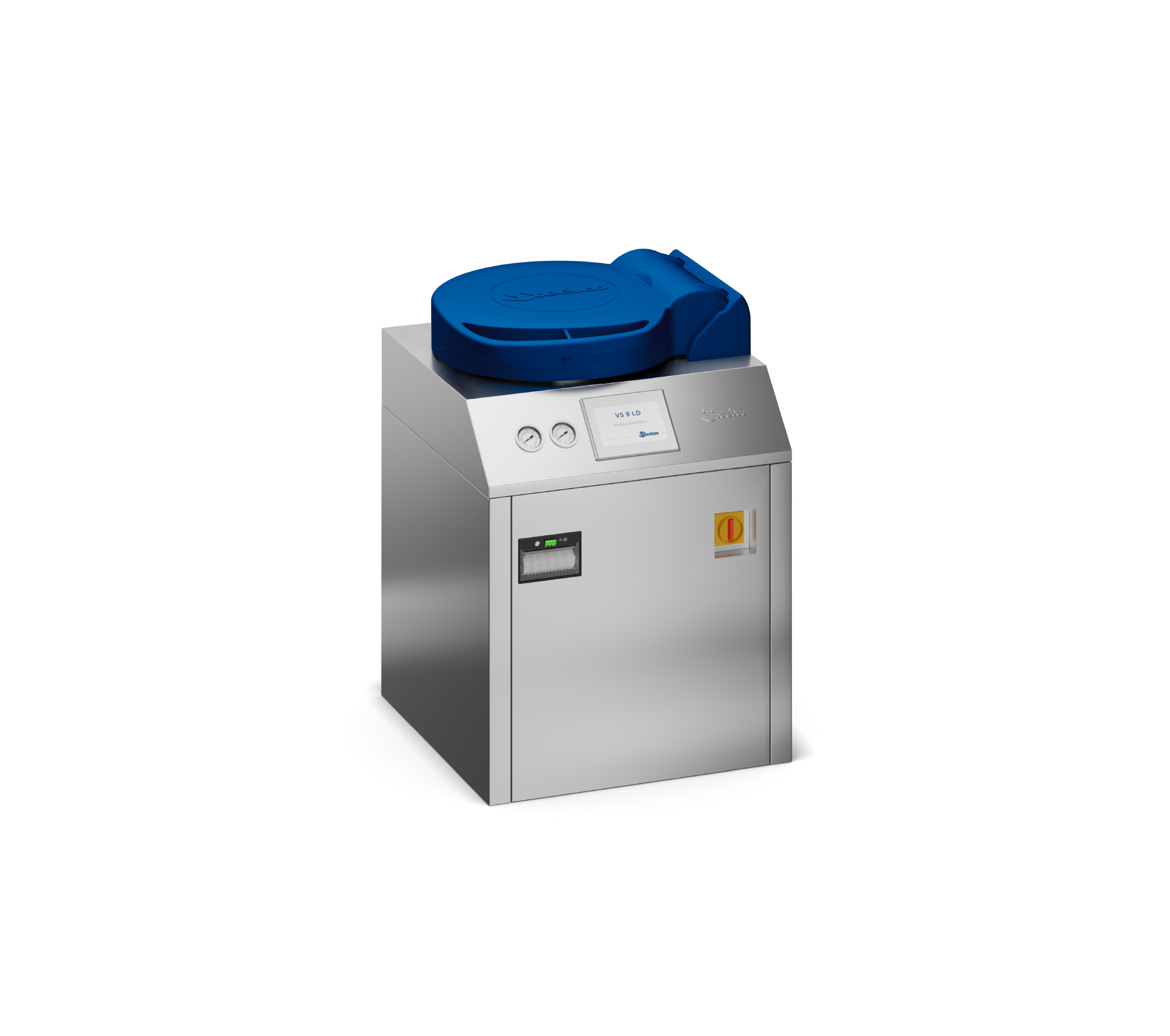

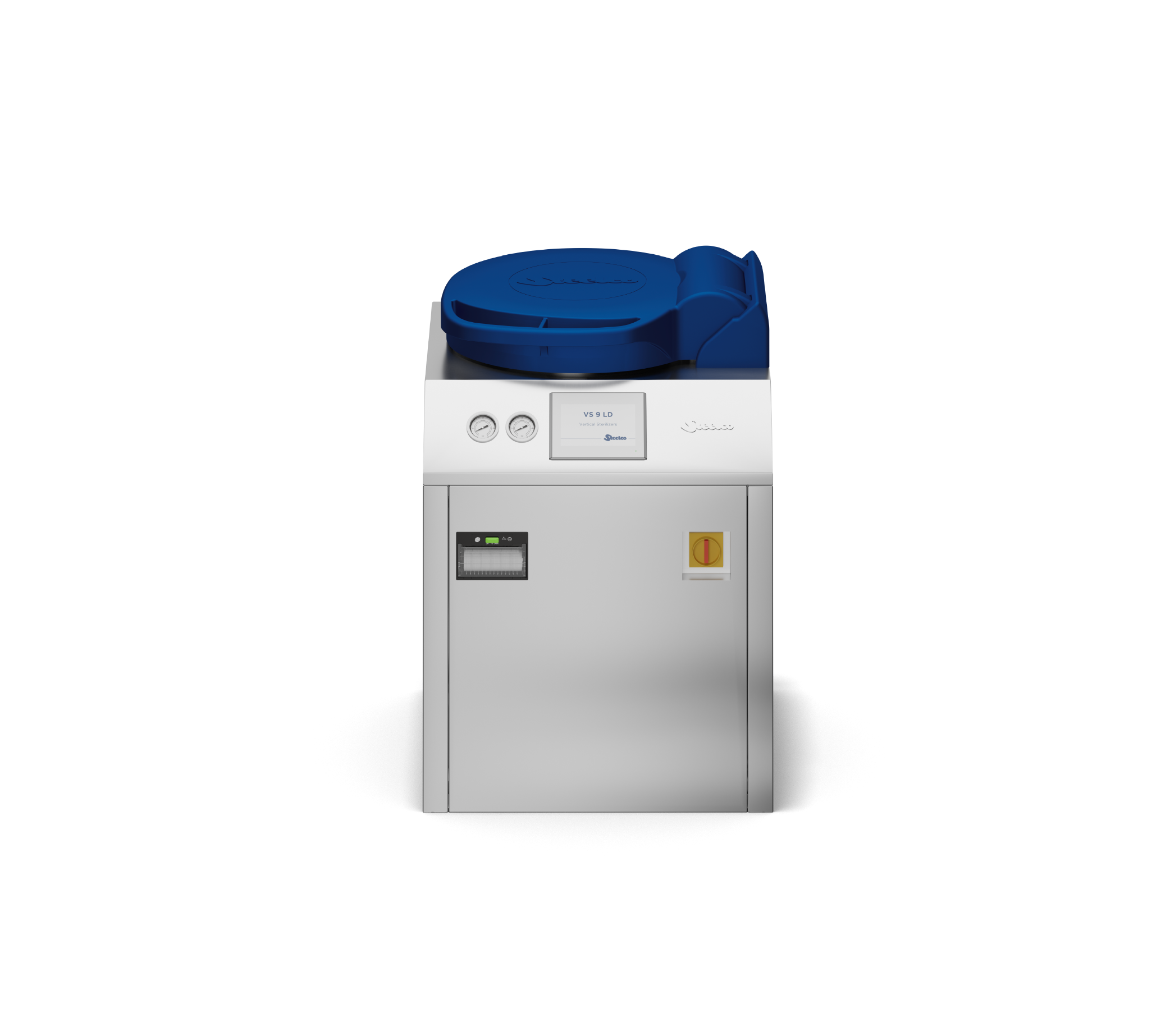

| VS 9 LD | ~ 85 | Ø 420 x H=636 | 720 x 724 x H=1003 mm – H=1470 mm (with door open) | |

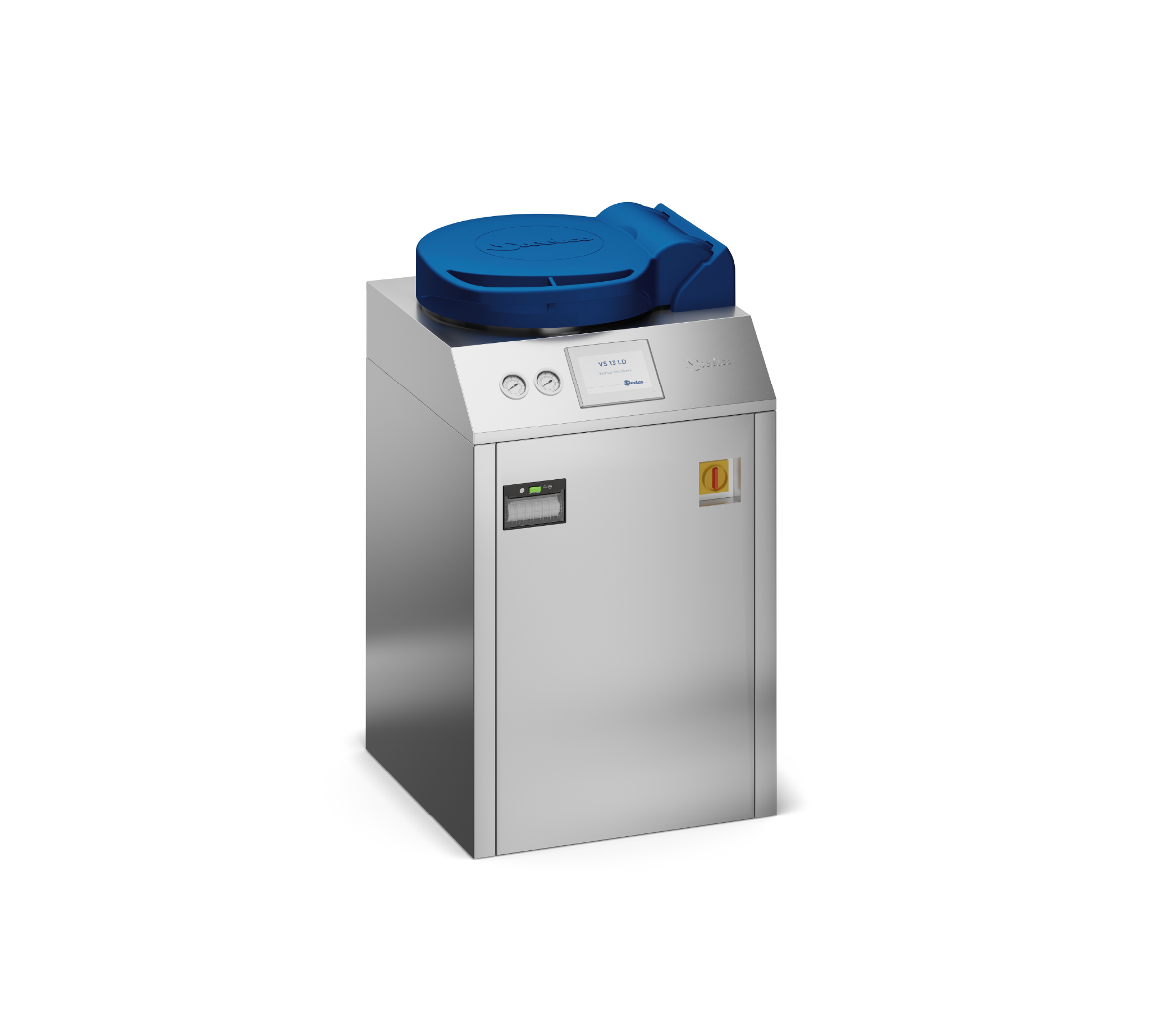

| VS 13 LD | ~ 125 | Ø 420 x H=896 | 720 x 724 x H=1238 mm – H=1700 mm (with door open) |
More Information
Downloads
Steelco VS L Series Steam Sterilisers
Download
