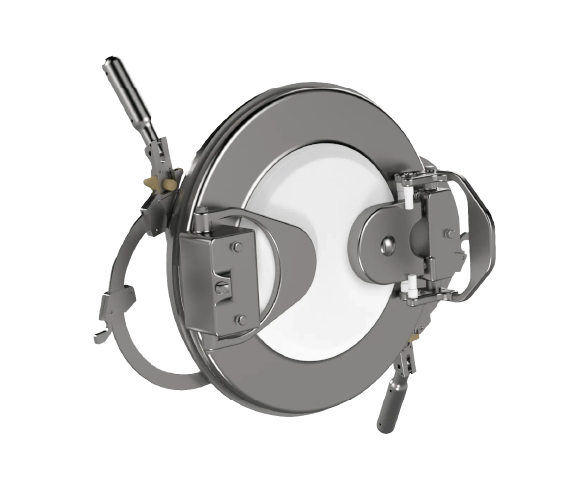

ABC Transfer® Rapid Alpha Transfer Port
Our range of rapid transfer ports are compatible with other brands and fully comply with the Annex 1 of the European GMP. Engineered to come in internal or external opening variants, and modular options allow upgrades from one configuration to another for future operational needs.
Trusted by
Key Benefits
-

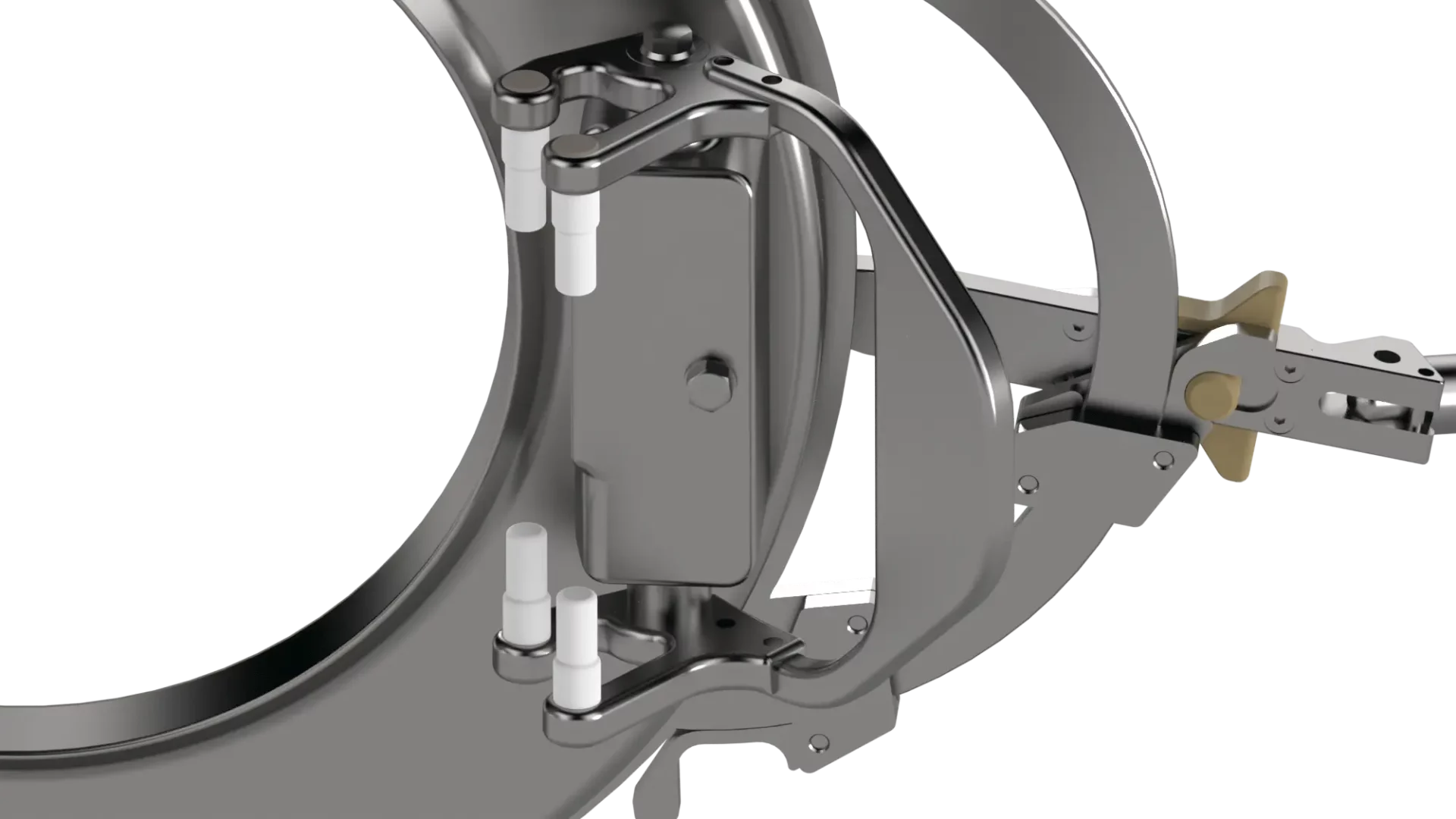

A unique opening and closing system
Regardless of its position on the isolator, the Alpha Port can be opened up to 180 and closed with no effort.
-
Reduced risks of particulate or biological contamination
Featuring the revolutionary EasyGlide™ seal system and enhanced sterility assurance with integrated safety locks, these Alpha ports deliver cGMP- assured performance you can trust.
-
Double-wall isolator assembly
Our rapid transfer port range is to be integrated into double-wall as well as single-wall isolators. Featuring an Alpha Port built in two-second bodies, eliminating the need for a complicated stainless-steel plate, ensuring compatibility with alternative systems.
-
No Hidden Surfaces
The finish of the port is flat meaning it’s easy to clean and doesnt pop out while cleaning.
-
Leak Tight Design
With no lip seal, the design is more leak-tight than competitors’ filters, which can leak or fall off. This prevents contamination and costly production stoppages.
Available Accessories
- A full range of supporting accessories is available to help streamline transfer workflows.
Variations
This product is available in multiple configurations to accommodate different process requirements, operating environments, and customer-specific applications.
- RTP Classic Alpha Port Ø190
- RTP Gloveless Alpha Port Ø190
- RTP Classic Double Wall Alpha Port Ø190
- RTP Classic Alpha Port Ø270
- RTP Gloveless Alpha Port Ø270
- RTP Classic Double Wall Alpha Port Ø270
- RTP Gloveless Double Wall Alpha Port Ø270
Specifications
Surface Finish | Leak Tightness | Opening Options | Ergonmic Features | Installation Compatiblity | Modular Designs | Typical Diameters Availablen |
|---|---|---|---|---|---|---|
| 0.5 µm rugosity | Class 1 standard | • Internal •External •Gloveless (upgradeable) | Programmable door opening; reduced torque; various lever options | Single-wall & Double-wall isolators | •Fixed seals •No hidden surfaces & minimal extractables | Ø190 mm x Ø270 mm (standard) |
