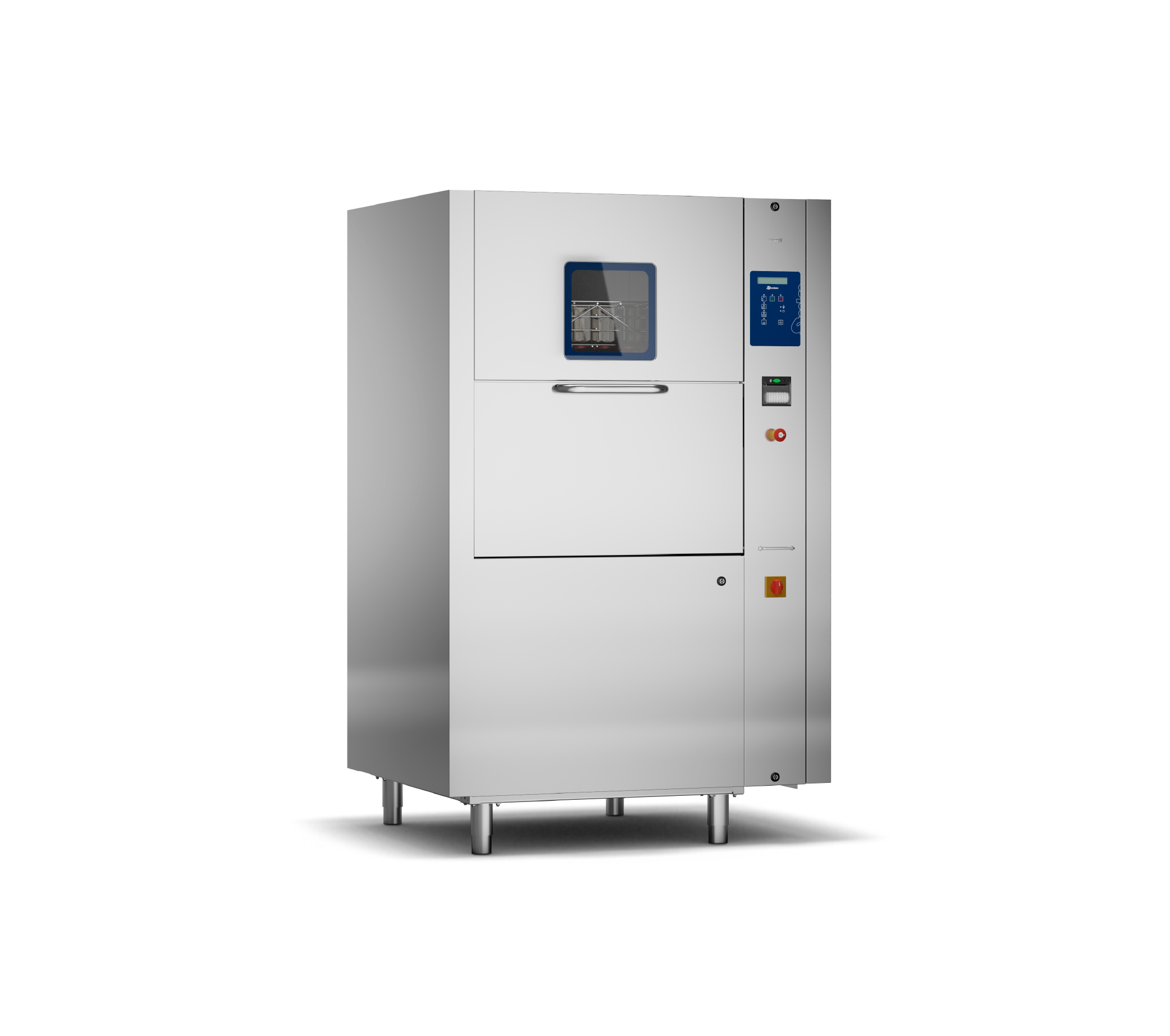

AC 1200

Compact Cage and Bottle Washer

In partnership with Steelco, Sychem’s AC 1200 is a compact-sized washing device specially designed to wash and sanitise all types of animal care equipment of your vivarium: cages, feeding bottles, and fish tanks. The compact design grants the highest flexibility of installation and minimises operating costs.

Available as a single-door or double-door version for a pass-through application, the device offers the highest levels of cleaning efficacy, with micro-organisms’ thermal/chemical destruction by rinsing at 85°C / 185F through an independent hydraulic circuit ensuring a contamination-free environment. Electrical or steam heated, the unit is equipped with a double dosage unit for chemicals as standard; additional dosing systems can be added upon request.

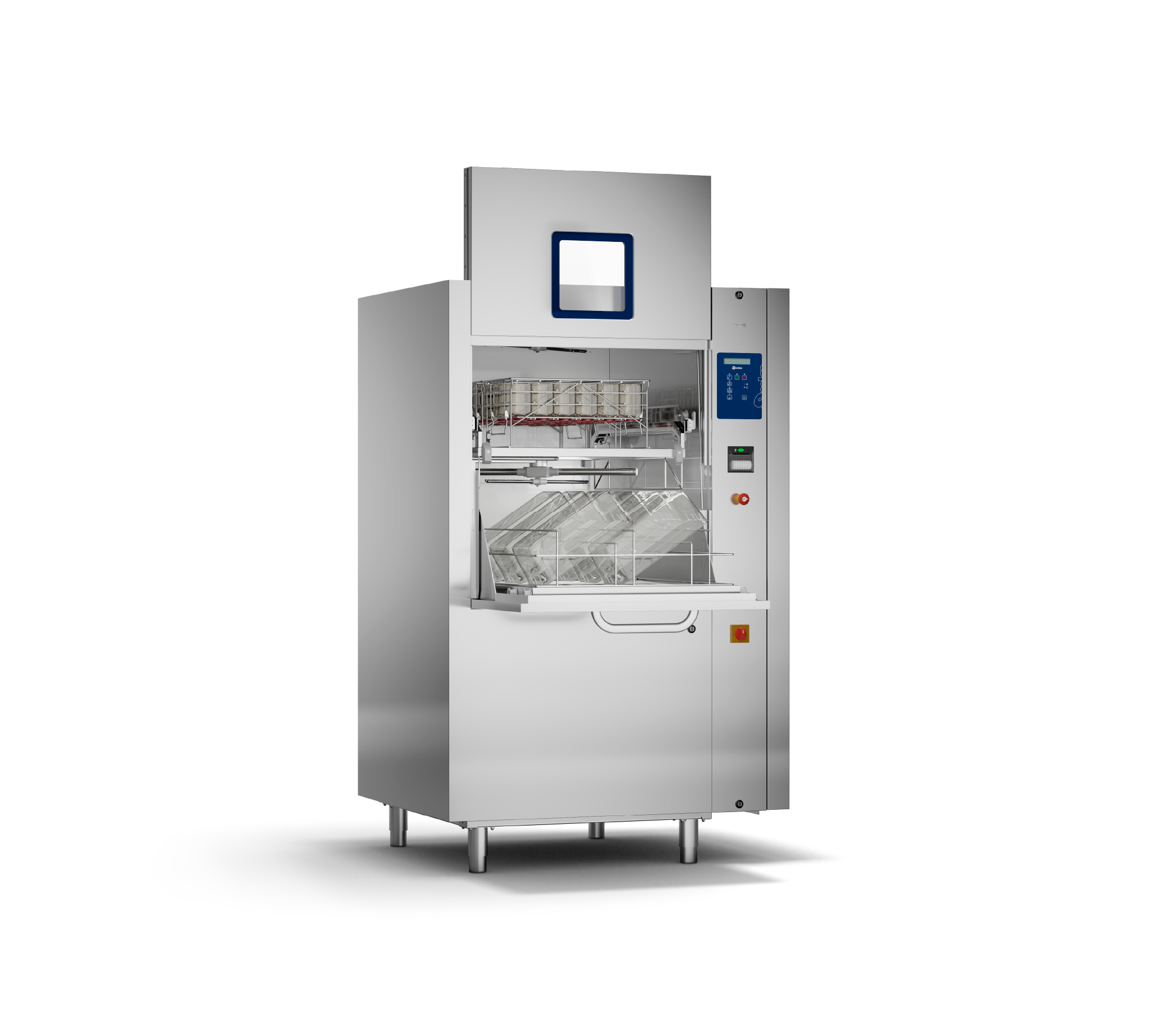

Our AC 1200 features an upper drop-down vertical space-saving sliding loading door. The lower section of the door, when open, acts as a loading platform for the loading tray allowing a convenient loading and unloading job. A comprehensive range of dedicated accessories allows for the optimised loading of animal cages and washing carts with injection systems for bottles.

Chamber Volume (L)

Operating Temp (°C)

Heating Options

Download Brochure

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Key Features

Hygienic Design

High-quality AISI 316 L stainless steel chamber and doors combined with AISI 304 external body for long-term reliability and maximum hygiene.
Water and Energy Saving

An elaborate system of recirculation and reuse of the water used during the final rinse significantly reducing energy and water consumption.
Dosing Efficiency

An integrated chemical dosing pump, controlled by a microprocessor, allows modifying the quantity of product required adapting it to every type of cycle.
Process Quality

Flow meters for redundancy chemical dosing control and a conductivity sensor for accurate measuring of the conductivity value during the final rinse are available as options.
Intuitive Control System

User-friendly PLC control panel, allowing for 40 programming options.
Traceability

RS 232 port for printer. USB port for historical cycle data download and software upgrades. Integrated printer available as option.

Discuss The Range

Certifications

ISO 9001 Certified Quality System and ISO 13485 Medical Division. In addition, our products are subject to rigorous quality control systems and inspections. This coupled with continuously training of our technically specialised personnel ensures the best in class product solutions and support.

Discuss The Range

Configurations

Overall Dimensions WxDxH (mm) Single Door	Overall Dimensions WxDxH (mm) Door Door	Chamber Volume (L)	Enquire
1200 x 1000 x 1900	1245 x 1030 x 1900	~780

More Information

Smart Filtering System

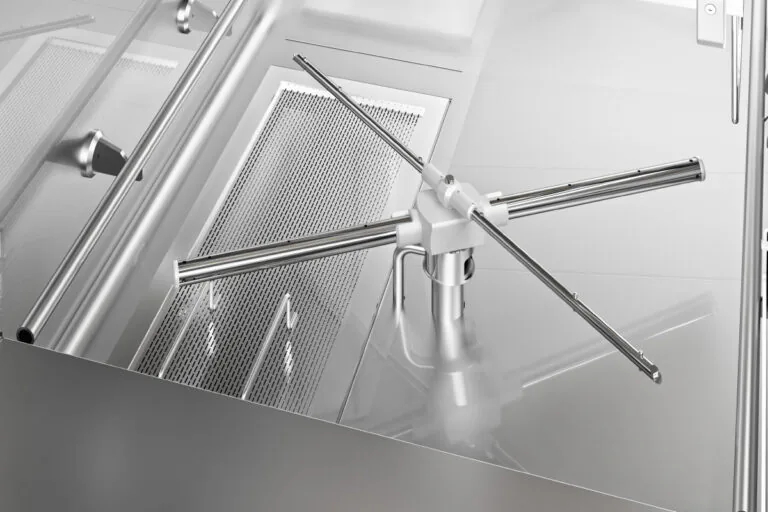

Steelco protects your equipment’s life cycle and guarantees safety to the user: an innovative multistage water filtering system combined with a self-cleaning filter for recirculation of the washing water. In addition, the machines are equipped with an independent washing/rinsing hydraulic system for an extra level of cleanliness.

Aquatic Tank Processing Kit

Specific kit for reprocessing aquatic tanks used in research facilities, including three chemical dosage pumps, upgrade to washing circuit, flow meters, and a conductivity probe.

Optimal Cleaning Performance

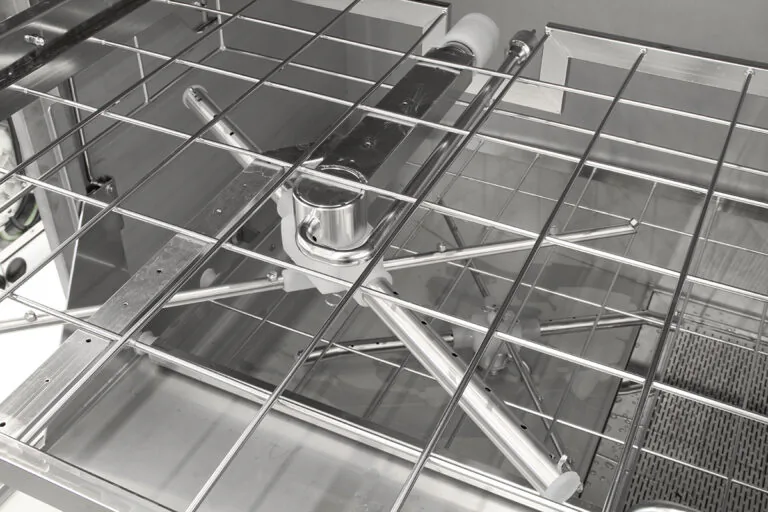

The washing system, operating with independent washing and rinsing hydraulic circuits, features three-level rotating spray arms positioned on the top, middle, and bottom levels of the washing chamber. The washing water is loaded in the washing chamber sump and heated up to the temperature defined for the washing phase. Final rinse water for sanitization is heated up into an AISI 316L pre-heating side tank. Temperatures are monitored by temperature probes.
