AC 7500

Cage and Rack Washer – Hinged Door
In partnership with Steelco, Sychem’s AC 7500 cage and rack washer is a heavy-duty, large capacity, hydro-spray, steam or electrically heated washer specifically designed to support the throughput of medium and large-size biomedical research facilities such as vivariums and laboratories.

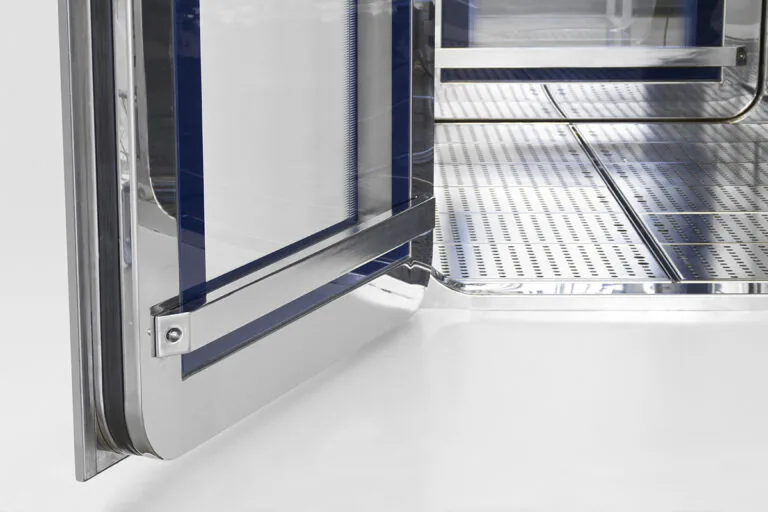

Extremely versatile layout configurations: floor mounted or pit mounted, single door or double door pass-through version, with a manual hinged door in full glass or stainless steel with window. Its compact size and frontal access for servicing allow it to be installed on premises of reduced dimensions.

To meet all client needs, the hydraulic circuit can be designed with a single process circuit for recirculated wash and rinse phases or with a full wash and rinse circuit separation. Both configurations are equipped with two dosage units and, upon request, can be equipped with side-heated water tanks to grant high flexibility in cycle development. Multiple oscillating spray arms guarantee complete and continuous coverage of the load and the chamber providing excellent wash results in a short cycle time.

The AC 7500 series of cage and rack washers features an operator multi-language touch screen HMI with auto diagnostic checking that continually monitors and displays status.
Download Brochure
steelco-ac-7500-side
steelco-ac-7500-front

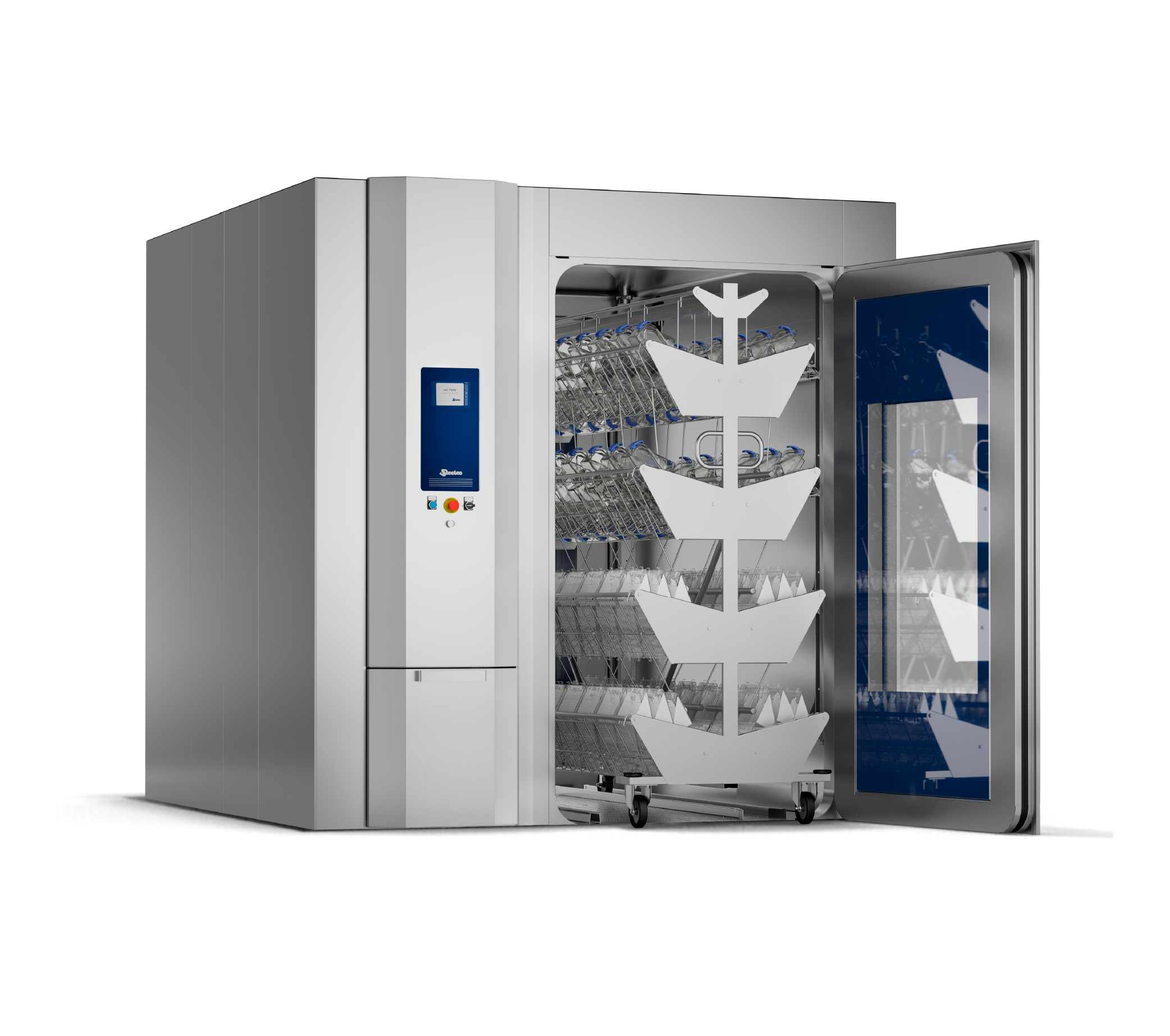

steelco-ac-7500-open

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Client 1

Key Features

  • Enviromental Sustainability

    Running cost saving of up to 95% compared to conventional design: 75% time saving, 95% water saving, 95% energy saving

  • Flexible Hydraulic Configurations

    Hydraulic circuit available with a single process circuit or with a full wash and rinse circuit separation. Additional pre-heating wash tanks can be specified when different chemicals are used or to reduce cycle time

  • Loading/Unloading Solutions

    Tailor-made presentation racks for cages and bottles or automatic loading solutions to maximise efficiency and decrease work-related injuries

  • Dosing System

    Standard equipped with two chemical dosage units and flow meters for accurate volumetric dosing. Additional dosing unit for rinse aid or disinfectant available upon request

  • Drying Efficacy

    Loads are exposed to a hot air flow system to assist in the drying of exposed surfaces. Electrical or steam drying system with blowers available

  • Easy Maintainence

    Maintenance access to all components can be done from the front and rear sides of the device
Discuss The Range

Certifications

  • ISO 9001 Certified Quality System. In addition, our products are subject to rigorous quality control systems and inspections. This coupled with continuous training of our technically specialised personnel ensures the best in class product solutions and support
Discuss The Range

Configurations

Door Dimensions WxDxH (mm)

Chamber Depth (mm)

Pit Depth (mm)

Overall Dimensions

Enquire
1170 x 21502300100The overall dimensions may vary according to machine configuration and customer requirements. Custom dimensions available upon request.

More Information

Pit Reduced Down to 100mm/4’’

The need for a deep pit has in the past been a challenge for the installation of a rack washer, especially in refurbishment projects. The AC 7500 Series has been designed for installation with just 100mm / 4’’ pit depth. We are always available to provide custom chamber sizes to fit existing pit, allowing direct floor loading of large, heavy, or bulky items. Where pit mounting is not possible, the machine may be floor-mounted with a loading ramp.

Hygienic Design

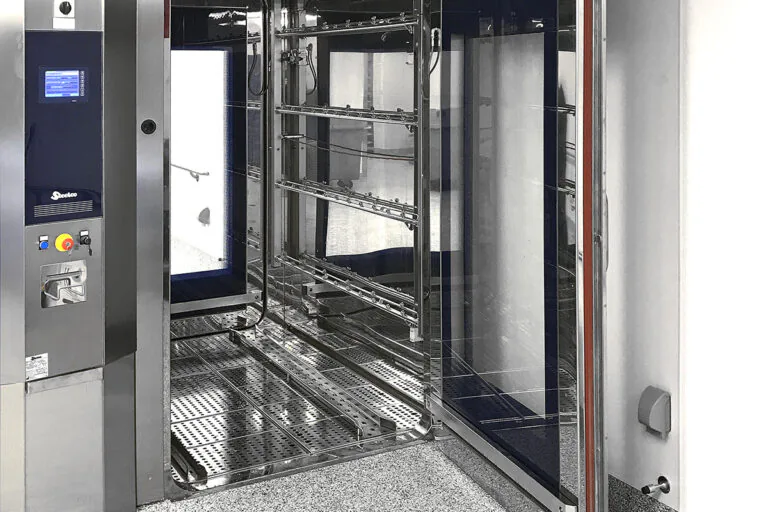

High-quality AISI 316 L chamber and doors combined with AISI 304 external body for long-term reliability and maximum cleanliness. AISI 316 L stainless steel spray nozzles are installed on multiple horizontally mounted oscillating pipes on the two sides of the wash chamber to grant full washing chamber/load coverage. The loading floor is composed by sections that can be easily lifted to reach the bottom of the washing chamber for cleaning. It is equipped with adjustable rail guides to match the client cart and rack castor layout.

Innovative Water Filtering

The AC 7500 is equipped with a multi filtration system made up of 3 different levels; the first two filter stages in the sump and the final one – inline self-cleaning filter – within the water recirculation circuit. The filtration system captures residue during the re-circulation of the wash water and protect recirculation pump from debris with pre- filter and flush self-cleaning filter. Filters can be easily removed for cleaning.

Decontamination Options

Due to its air-tight construction, the AC 7500 can be used to decontaminate heat-sensitive load using Hydrogen Peroxide – H2O2  or Chlorine Dioxine. The vapor-Phase Hydrogen Peroxide generator can be onboard mounted and fully integrated into the technical area of the washer. As an alternative, the AC 7500 can be connected to an external generator in order to run a decontamination cycle.

NHP Option

Designed to support the treatment of large animal cages and racks in medium and large-size facilities. The NHP option is equipped with additional vertical oscillating pipes on one side, a winder door, and a chamber fitted with an inspection window in the door’s inner side protected from the load. A more powerful washing pump and a second wash tank result in great flexibility in the cycle setting.

Advance Control System

Industrial PLC with Touch Screen HMI and USB port, tele-service and tablet connectivity ready. Complete indication of machine functioning: cycle phase, time, temperature, chemical dosing, water quantity, utilities consumption and drying. USB port for historical cycle data download and software upgrades. Full cycle data traceability can be printed by the optional built-in thermal printer or alternatively registered in the SteelcoData traceability software.

Complete Washing Traceability

SteelcoData View software is designed to collect and record data from Steelco devices. Information collected in real time is traced and efficiently visualised for device monitoring and data management.
