DS 610 G2 Series
Our range, developed to limit water and energy consumption, includes configurations dedicated to high productivity and focuses on washing process efficiency.

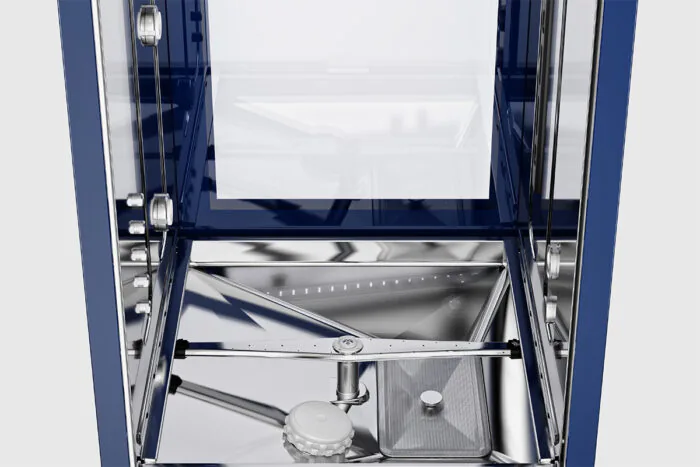

The DS 610 G2 Series offers a complete treatment of washing, thermal disinfection, and drying with HEPA 14 filtered forced hot air. The washing system with a variable speed pump adjusts the circulation pressure and water consumption according to the cycle phase and the type of load.
Sychem washer disinfectors offer versatility, safety, quality, and process traceability with low operating costs.
Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:
Client 1
Key Features
-
Flexible Solutions

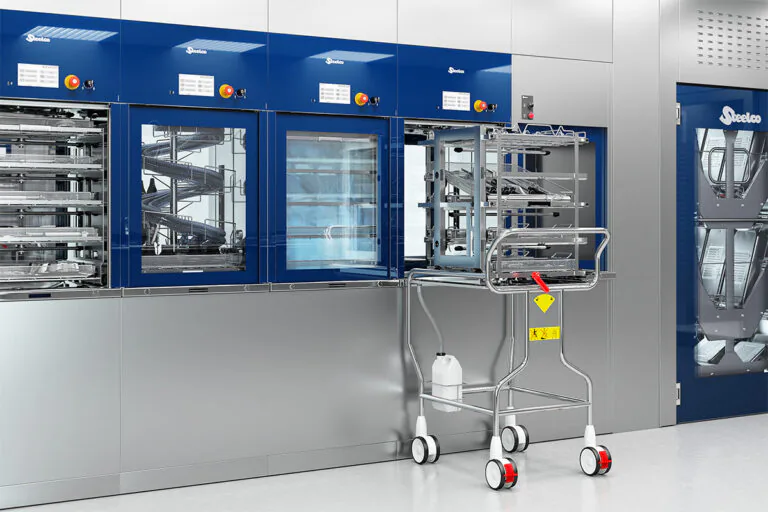

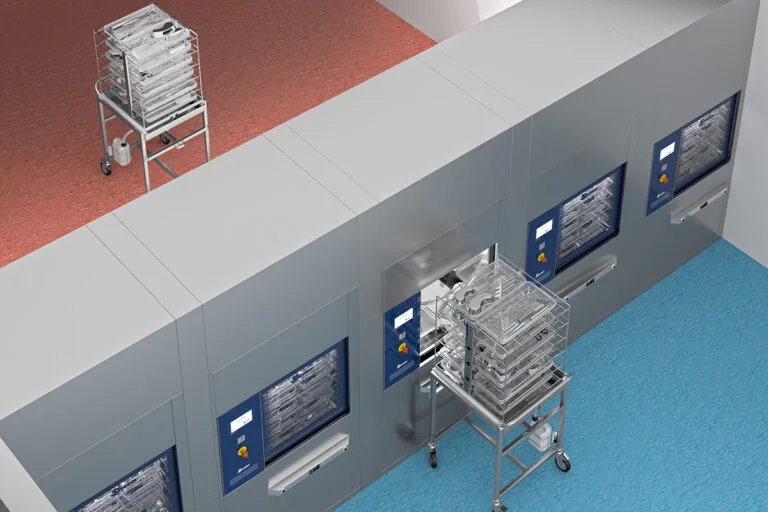

The device can be either free-standing or barrier mounted. Its single or double pass-through door(s) can be opened and closed manually or automatically.
-
Drying Efficacy
Built-In HEPA 14 filtered forced air drying system providing even and fast drying of all instruments. Adjustable time and temperature settings, optimising cycle duration and energy consumption.
-
Easy Maintenance
Highly simplified and cost-effective maintenance. Frontal service access to all the components. Units are equipped with rolls for fast and easy positioning. Fast service interventions with an easy-to-read synoptic panel allowing for an in-depth overview of machine and component status.
-
Network Connectivity
Wi-Fi and Ethernet connection are equipped as standard to collect machine data through the SteelcoData Live software. In addition, an integrated printer or USB port allow the download of historical cycle data and system upgrades. The device is also natively ready to connect with a cloud environment.
-
User Friendly Large HMI
7″ colour touch displays are integrated into the glass front panel of the washer and installed on both loading and unloading sides.
-
After Sales Flexibility
In a changing world, your needs may also change. we offer retrofit kits to adapt to the changing customer demands.
Certifications
- Steelco DS 610 G2 Series of washer disinfectors is a CE marked Medical Device, notified body code nr. 0051, following MDR (2017/745/UE) and applicable standard such as EN ISO 15883-1/-2/-5.
Configurations
Model | Description | Dimensions WxDxH (mm) | Chamber Volume (mm) | Basket Volume (L) | Load Capacity | Enquire |
|---|---|---|---|---|---|---|

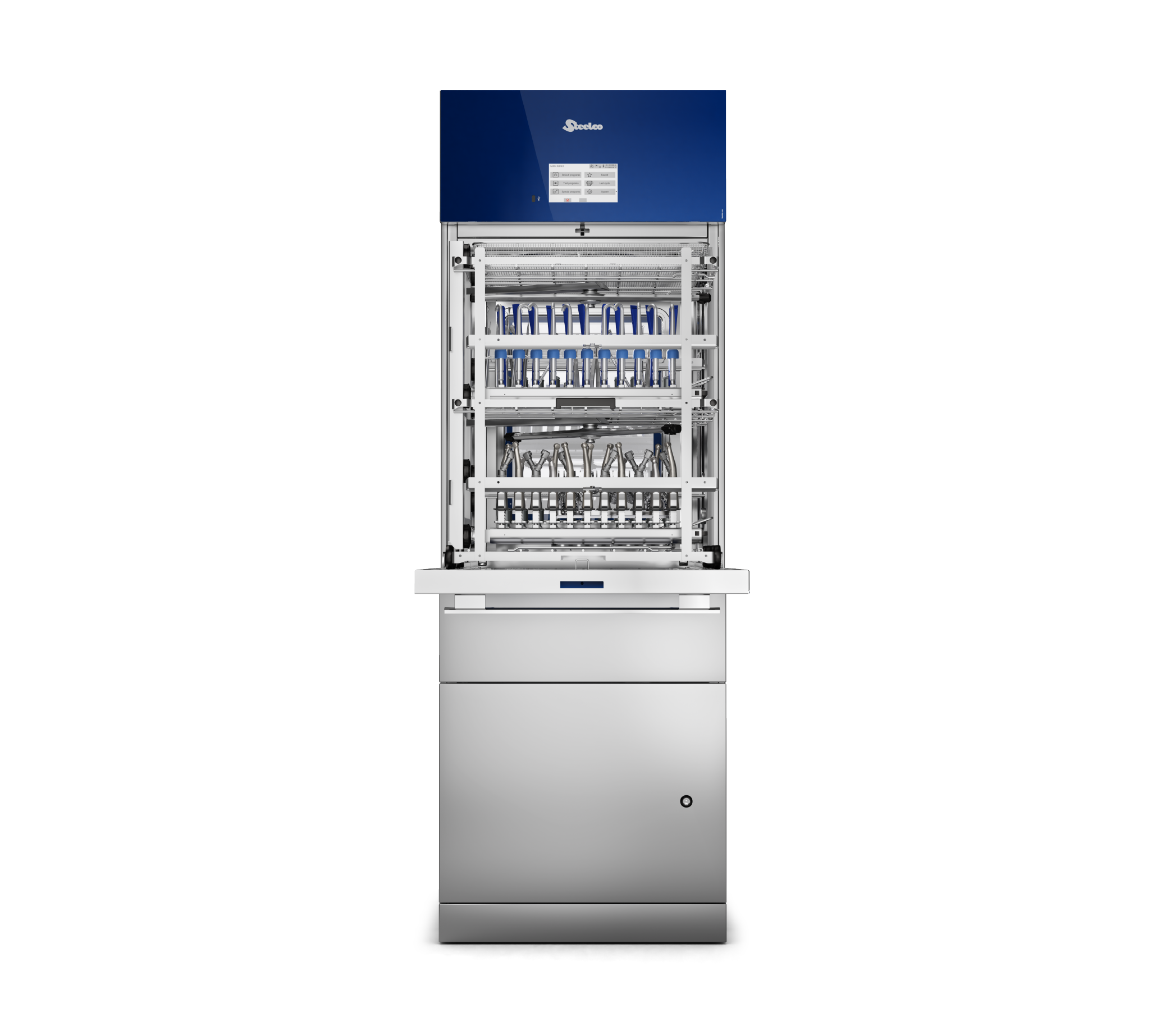

| DS 610 G | This configuration is available with a frontal-loading hinged door. The ergonomic design of the door level height allows the user a convenient loading/unloading job with the support of a manual loading/unloading trolley. | 650 x 700 x 1940 | ~253 | ~223 | Up to 12 DIN 1/1 trays | |

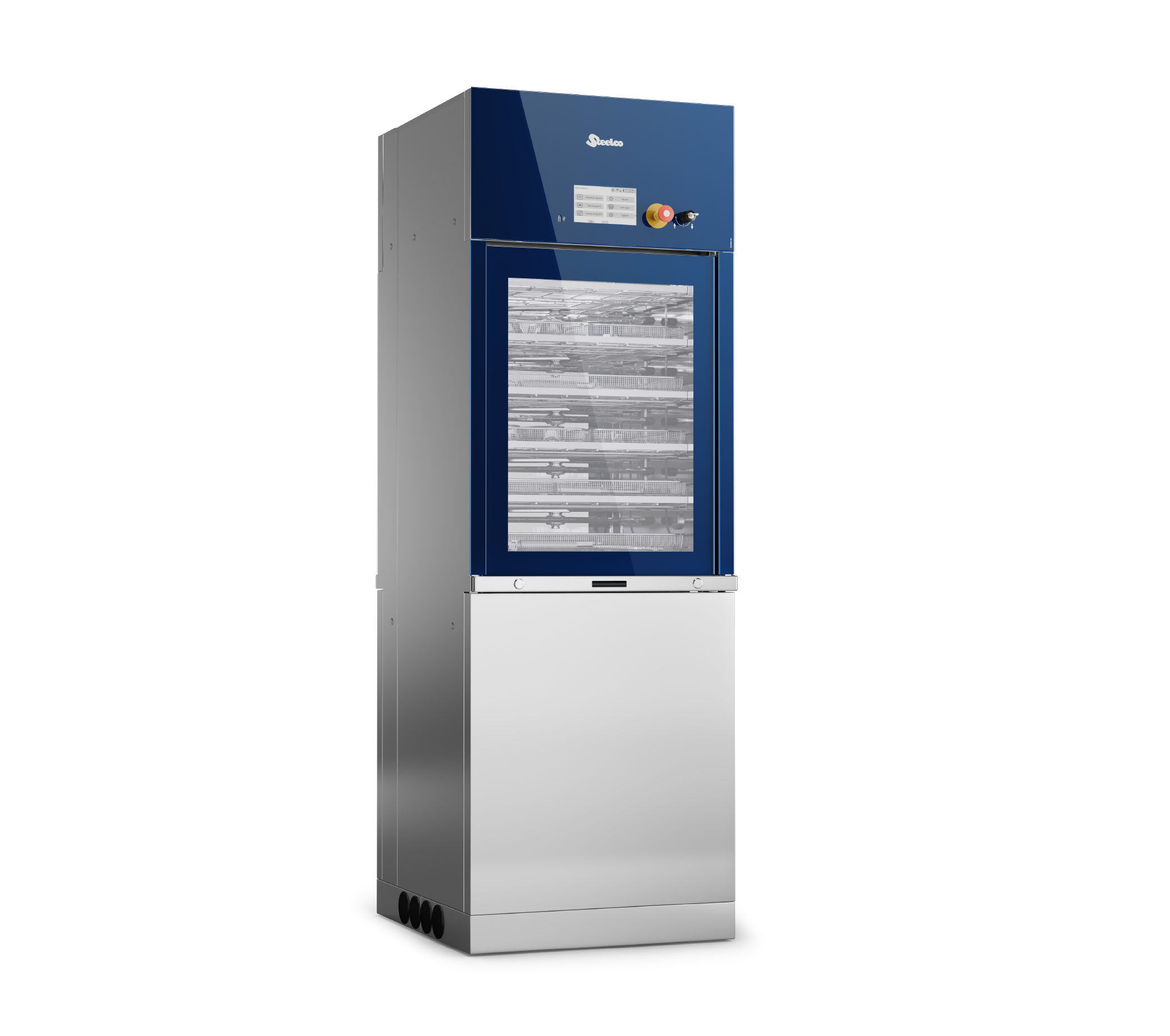

| DS 610 SL G2 | This configuration is available with a motorized sliding-down door. This space-saving option ensures high washing and drying standards even in situations when space is at a premium. | 650 x 700 x 1940 | ~255 | ~223 | Up to 12 DIN 1/1 trays |
