LAB 610

Hinged-door Medium Capacity Glassware Washer
The LAB 610 large capacity laboratory glassware washer is designed for optimal cleaning and drying performance for medium-to-large scientific laboratories. The hinged full glass manual drop-down door serves as a loading platform at convenient height for the bottom level.

Electrical or steam heated, the washer is capable of injection washing and drying on up to 3 different levels with 4 possible rack locations, providing maximum flexibility through multiple chamber configurations, depending on the loaded items’ height. The upper levels can be removed depending on the height of the loaded glassware.

The HEPA 14 filtered forced air drying system with adjustable time and temperature settings help to ensure the complete inside and outside drying of all the glassware.
Download Brochure
steelco-lab-610-front

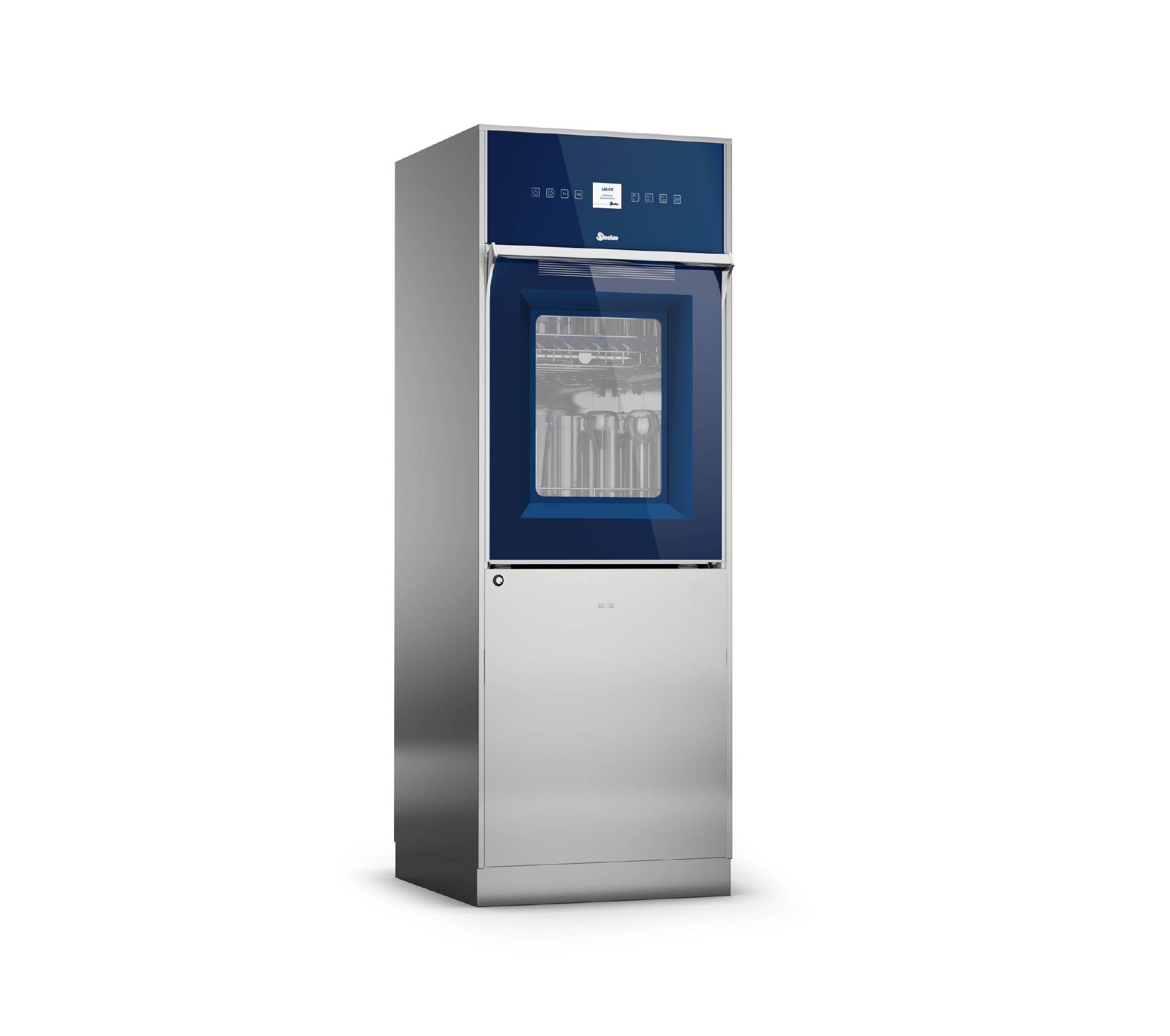

steelco-lab-610-side

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Client 1

Key Features

  • Flexible Solutions

    Up to three different levels with four possible rack locations for maximum flexibility. Removing the upper levels the unit can be used to clean large bottles and carboys of volume up to 60 lt / 15.85 Gal US.

  • Flow Meter and Conductivity sensor

    Flow meter for accurate volumetric dosing of chemicals and a conductivity sensor for measuring of the conductivity value during the final rinse phase are available upon request.

  • Drying Efficacy

    Built-In HEPA 14 filtered forced air drying system providing even and fast drying of surgical instruments. Adjustable time and temperature settings for the optimisation of cycle duration and energy consumption.

  • Easy Access to Chemicals

    A frontal sliding drawer for easy access and storage of chemical containers – up to three 5 lt/1.32 Gal US

  • User-Friendly Control Panel

    High safety and easy to use soft touch control system on glass panel with LCD colour display to visualise cycle status, allowing for 40 programming options.

  • Traceability

    Dedicated port for printer or PC connection to monitor and validate washing/disinfection cycles.
Discuss The Range

Certifications

  • Steelco Laboratory glassware washers comply with the current European directives and standards as follow: 2006/42/EC, 2014/35/EU, 2014/30/EU, and 2011/65/EU Directives, EN 61010-1, EN 61010-2-040, EN 61326-1, EN ISO 15883-1 current standards.
Discuss The Range

Configurations

Doors

Overall Dimensions WxDxH (mm)

Chamber volume (L)

Basket volume (L)

Enquire
High-visibility hinged full glass door650 x 687 x 1840~250~220

More Information

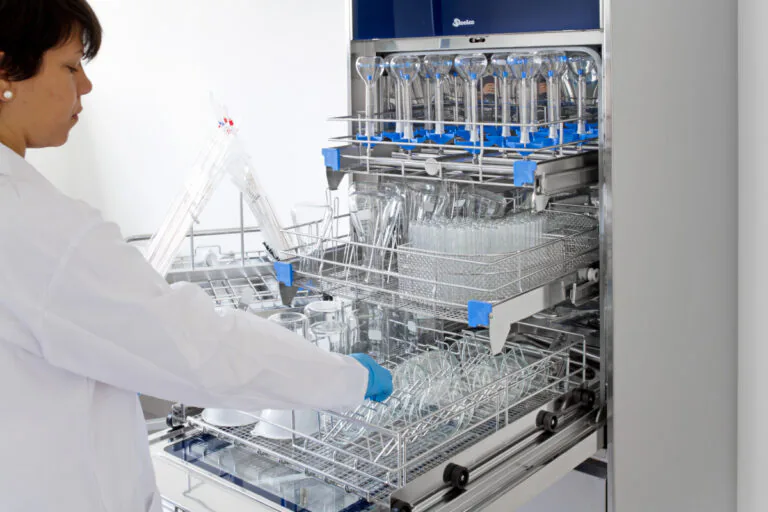

Washing Efficacy

Effective mechanical action with complete coverage is crucially important to assure optimal cleaning during the washing process. Customised washing pumps and circuits ensure a high flow rate combined with adequate spray pressure. The washing chamber and spray arms as well as tank filters are made of high quality AISI 316 L stainless steel (DIN 1.4404). The 250 lt / 8.83 cu ft washing chamber has rounded edges to avoid any dirt traps, minimising the risk of microbial growth.

Wide Range of Racks, Inserts, Trays and Accessories

A comprehensive choice of racks and accessories to meet different capacity and cleaning demands, allowing to maximise the numbers of different utensils and glassware that can be washed, preventing movement and damage, and ensuring complete coverage of the loads.

Smart Filtering System

Design quality and proper maintenance are critical to ensure compliance with standards, sustainability, and a durative life cycle. Our Lab 610 glassware washer is equipped with a triple water filtering system. Ergonomically accessible from the washing chamber, it captures residues preventing their re-circulation,  extending in this way the pump life.
