Microbiological Air Shower
In proud partnership with Ortner
Our Microbiological Air Showers are designed for environments where contamination control is critical. They are manufactured to meet GMP guidelines, ISO cleanroom standards, and Annex 1 requirements, making them ideal for Pharmaceutical, life sciences, chemical and laboratory industries.

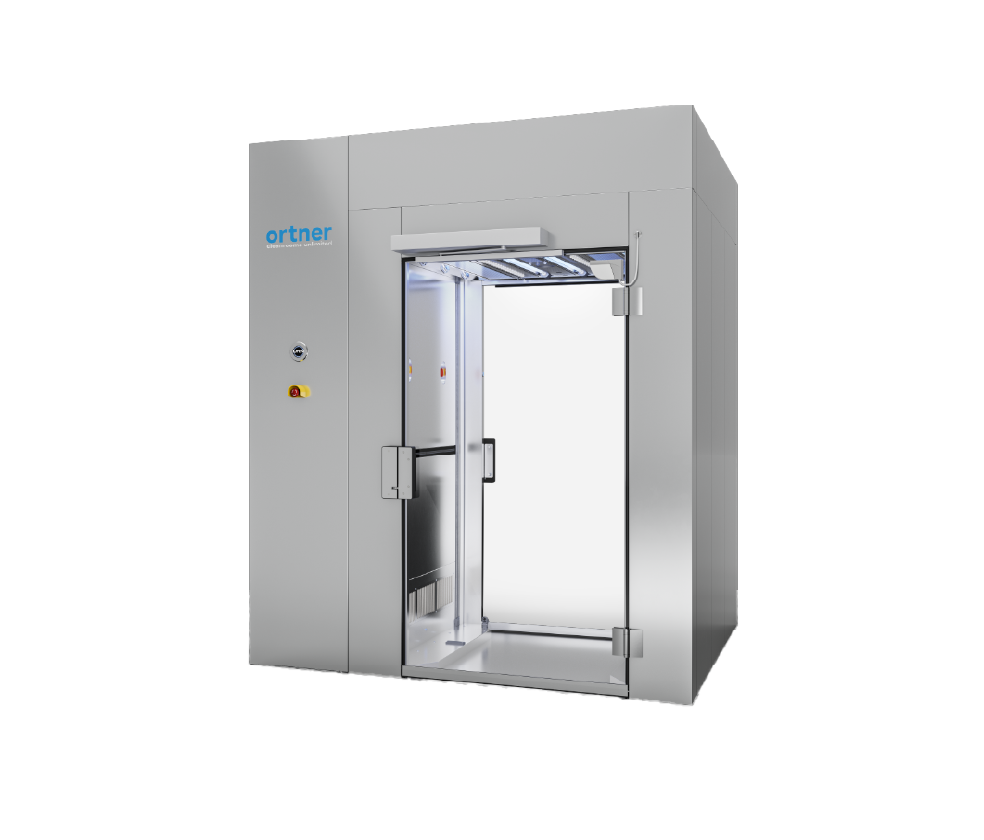

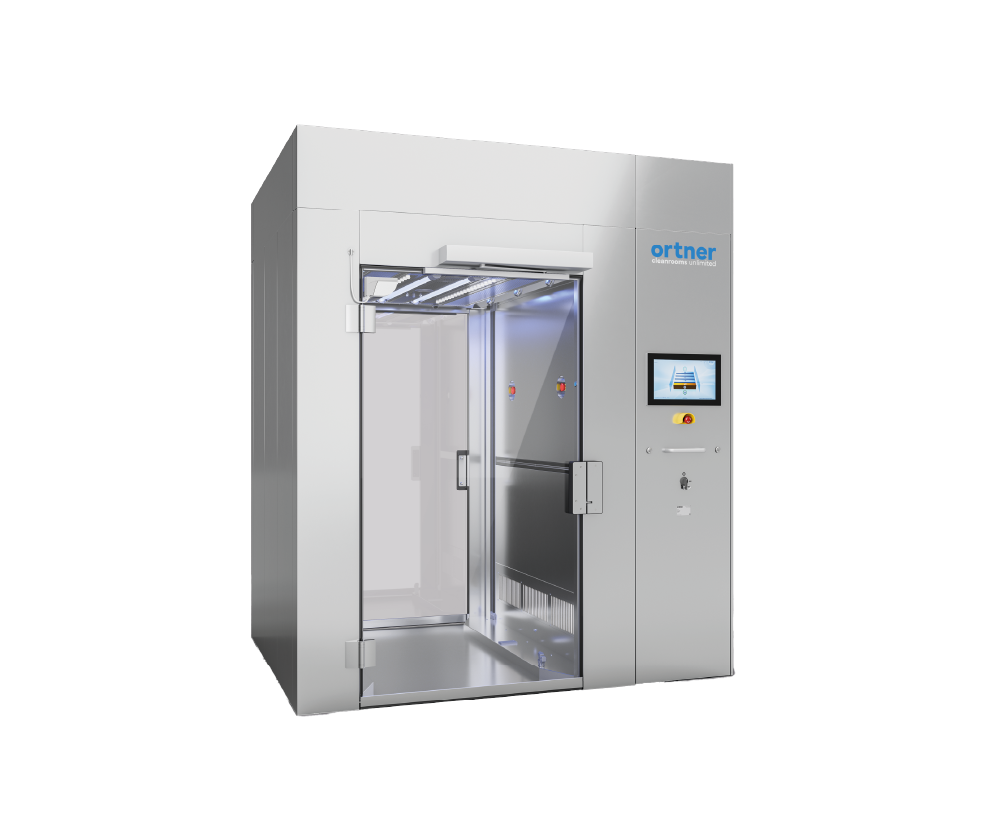

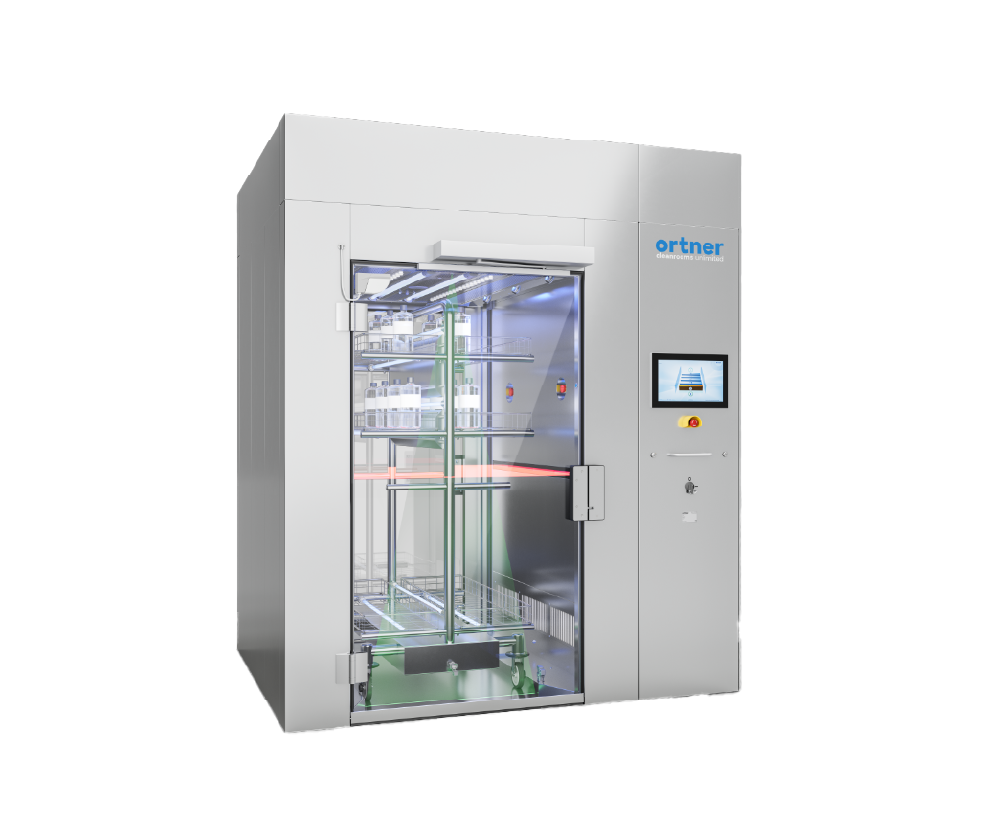

The system is a standalone, modular decontamination lock that enables the secure transfer of pallets between Class D and Class C cleanrooms or defined intermediate classes. During the process, the unit simultaneously performs particulate removal and microbiological decontamination, ensuring controlled and validated material movement between clean areas.
The system is a standalone, modular decontamination lock that enables the secure transfer of pallets between Class D and Class C cleanrooms or defined intermediate classes. During the process, the unit simultaneously performs particulate removal and microbiological decontamination, ensuring controlled and validated material movement between clean areas.
Ultimate Protection and Secuity During Pallet Transfer
Click to see full view
Click to see full view
Click to see full view
Click to see full view
Hover to zoom
Microbiological Air Shower
Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:
Key Features
-
Fully Validated Process For Repeatable Cycle
Meeting the correct requirements while each cycle is run, it delivers the same controlled parameters.
-
Flexible Loading Options
Supports manual, semi-automatic, or fully automatic operation to integrate with existing material handling systems.
-
Hepa H14 Filtration System
High-efficiency filtration supply, recirculated, and exhaust air maintains controlled airflow and particle removal.
-
Optimised Cycle Times
The system provides a high throughput capacity of up to 5 pallets per hour
Configurations
Technical Specification | Data |
|---|---|
| Material of External Cladding | Stainless steel V2A (1.4404 AISI 304) brushed Ra < 0.8 μm |
| Material of Internal Chamber | Stainless steel V4A (1.4404 AISI 316L) brushed Ra < 0.8 μm |
| Door design glass | Laminated safety glass (VSG) 2 x 5 mm – tinted |
| Door Sealing | Static lip seal and drop-down bottom sea |
| UVC output at 254 nm | Approx. 700 watts (4 x 57 W; 4 x 83 W; 2 x 70 W) |
| Filtration Technology | H14 cassette filters |
| Cleaning Nozzles | 10 x jet nozzles using Venturi principle |
| Air circulation airlock chamber | Air volume approx. 1500 m³/h. ionisation & air cooling |
| Chamber differential pressure control | -40 to +40 Pascal |
| Maximum noise level | < 67 dB (A) |
Dimensions
Model | Inner Chamber (mm) W x H x D | External Dimensions (mm) W x H x D |
|---|---|---|
| SG-1 (1) | 1000(3) x 1000 x 1080 | 1890 x 2500 x 1200 |
| SG-2(1) | 1000(3) x 1400 x 1080 | 1890 x 2700 x 1200 |
| SG-3(2) | 1000(3) x individual height (max. 1800mm) x 1080 | 1890 x 2700 x 1200 |
