VS Series Steam Sterilisers
With the VS Series of sterilisers for small clinics, available as a single or double door version, you can choose between two models with a processing capacity of 1 or 2 STU (with a chamber volume of 67.5 litres / 2.38 cu ft and 143 litres / 5.05 cu ft). An AISI 316L space-saving sliding down door obtained from a single molding without weldings offers maximum cleanliness and aesthetic elegance. The PLC digital microprocessor with a colour user-friendly 7″ touch screen HMI allows operators to refine the process and personalise the sterilisation programs.
Steelco VS Series small autoclave front view
Click to see full view

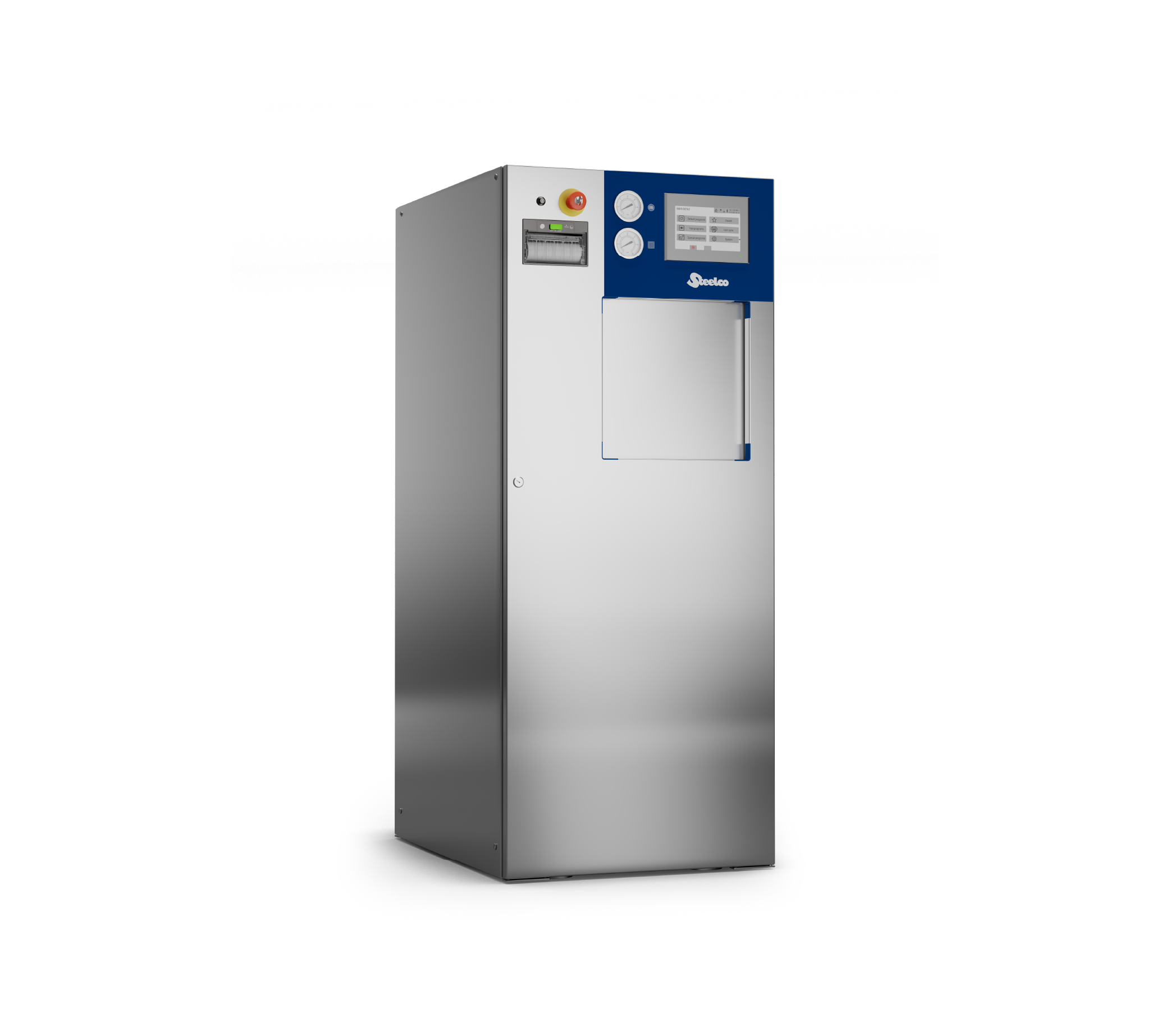

Steelco VS series small autoclave side view
Click to see full view
Hover to zoom
VS Series Steam Sterilisers
Steelco VS Series small autoclave front view
Steelco VS series small autoclave side view
Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:
Key Features
-
Safety, Design and Strength
High-quality AISI 316 L chamber and steam process piping are designed for long-term reliability and steam cleanliness. In addition, the acid-proof stainless-steel chambers and piping are fully insulated with CFC-free thermal insulation.
-
Shelves Position Configurable
Even in small sterilisers, Steelco provides maximum load flexibility by repositioning the load levels of the semi-extractable shelves.
-
Safety First
The manual door is equipped with a mechanism that keeps the door safely locked during the sterilisation process until completion. The units are fitted with a water drip collection tray as standard to prevent any potential water from dripping onto the floor.
-
Stand Closed Cabinet
Available with stand closed cabinet, with an ergonomic loading height of 900 mm above finished floor.
-
7″ User-Friendly HMI
The large 7″ touchscreen control panel supports operators in every step of their interaction with the device with clear and easy-to-understand operation tasks. Cycle programs can also be selected via a barcode scanner.
-
Full Traceability
Full history cycle traceability, compatible with Steelco Data Pro. Ethernet Port for network communication. Integrated printer available as an option.
Certifications
- Steelco sterilizers conform to European Directive for Medical Devices (93/42/EEC and its revised versions)
- Pressure Equipment Directive (PED 2014/68/EU)
- Technical norms and standards: EN 285: 2016, EN ISO 14971: 2012, UNI EN ISO 17665-1: 2007, IEC EN 61010-1: 2011, IEC EN 61010-2-040: 2016, EN 62366-1: 2015, IEC EN 61326-1: 2013
Configurations
Model | Dimensions (mm) | Chamber Dimensions (mm) | Chamber Volume (L) | Load Capacity |
|---|---|---|---|---|
| VS1 | 635 x 1510 x 814 | 330 x 330 x 620 | ~67.5 | 1 STUs |
| VS 2 | 760 x 1900 x 844 | 330 x 700 x 620 | ~143 | 2 STUs |
