Isolator Mock-Ups
As park of the package once you order an Isolator with us, you specify the isolator around your application. You can adjust physical attributes such as working height, chamber dimensions, glove port positions and transfer port locations, and confirm the isolator accommodates the critical components your process relies on.
Sychem Awarded Supplier
Sychem is an awarded supplier on the NHS Collaborative Procurement Hub framework for Aseptic Isolators and Cabinets. This framework provides a compliant route for all NHS organisations, part or fully government funded organisations and blue-light services to access a complete range of aseptic isolators and laminar flow cabinets, along with installation, maintenance, and validation services.
Read more
What Is An Isolator Mock-Up
This stage gives the customer the opportunity to identify any adaptations needed for specific site or process requirements. As well as providing a valuable opportunity to train staff ahead of going live, ensuring teams are confident and prepared from day one.

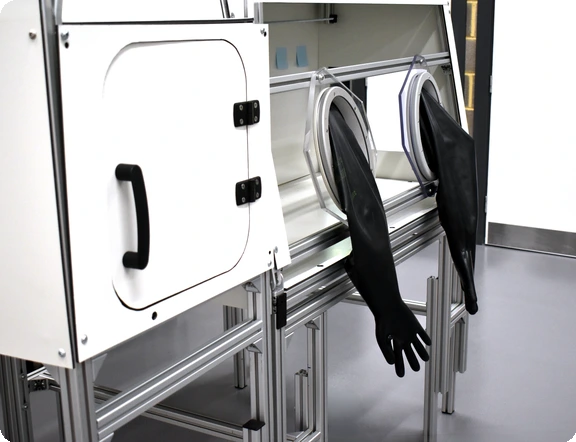

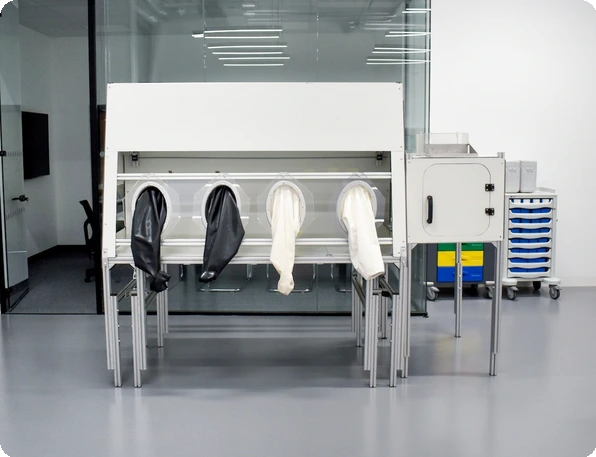

The isolator mock-up takes place within the first month of the contract agreement and lasts 2-5 days, depending on the project’s complexity. It is built around an isolator model and a set of template drawings that your team works through and modifies in real time.
Customised design tailored to your requirements
Mock-ups held locally at our UK facility
Minimises costly post-installation changes
Speeds up on-site validation and qualification
Designed around your process
What To Expect?

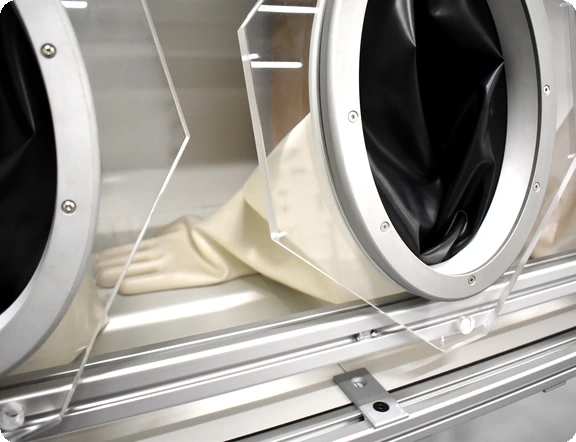

Over two to three days, your team works through the mock-up, checking glove port positions, operator reach, material transfer and cleaning access. Following the mock-up, you receive revised design drawings, normally within 10 working days. Once you approve them, manufacture begins.
Why Carry Out a Mock-Up?
Your operators assess reach, visibility and posture at each glove port before the design is fixed. This reduces the risk of strain injuries and gives your team an isolator they can work at efficiently throughout a shift. Changes made at drawing stage cost a fraction of modifications made after manufacture or factory acceptance testing.
From Concept To Confidence
Video Walkthrough
This video from our team explains what to expect from an isolator mock-up study at our Southampton facility, from assessing glove port positions and operator reach to agreeing the final drawings with Ortner, and how the study shapes your project from the outset.
